Our product range includes PTFE sheet-lined equipment, PTFE spraying and roller coating, plastic-lined equipment, PTFE-lined steel pipes and fittings, and related fluoropolymer components made from PTFE, PFA, ETFE, FEP and other advanced materials.

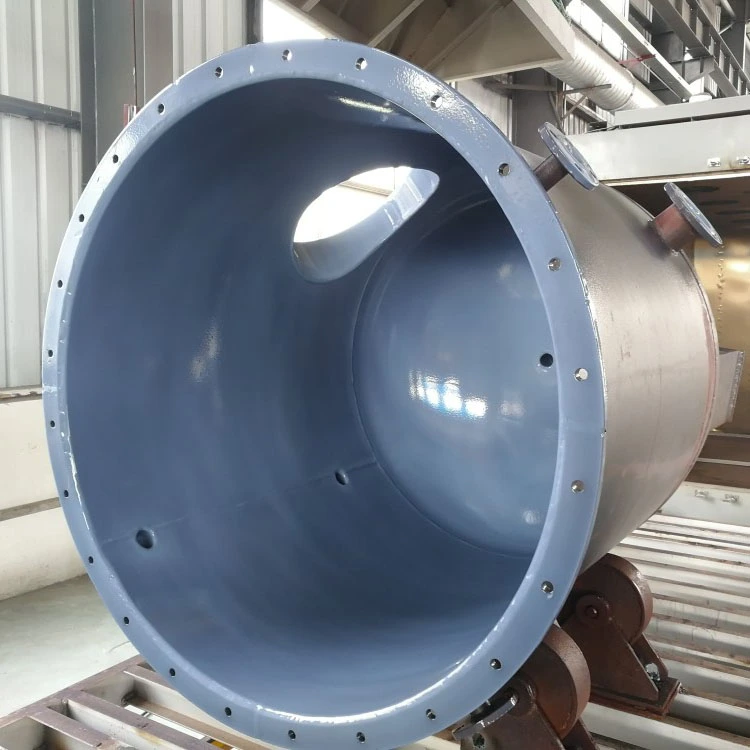

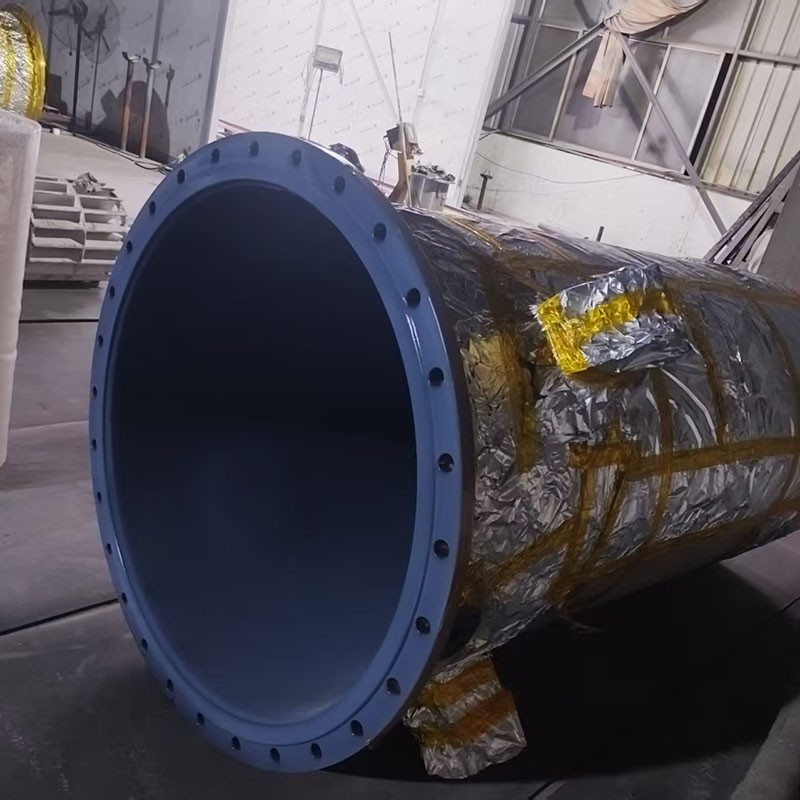

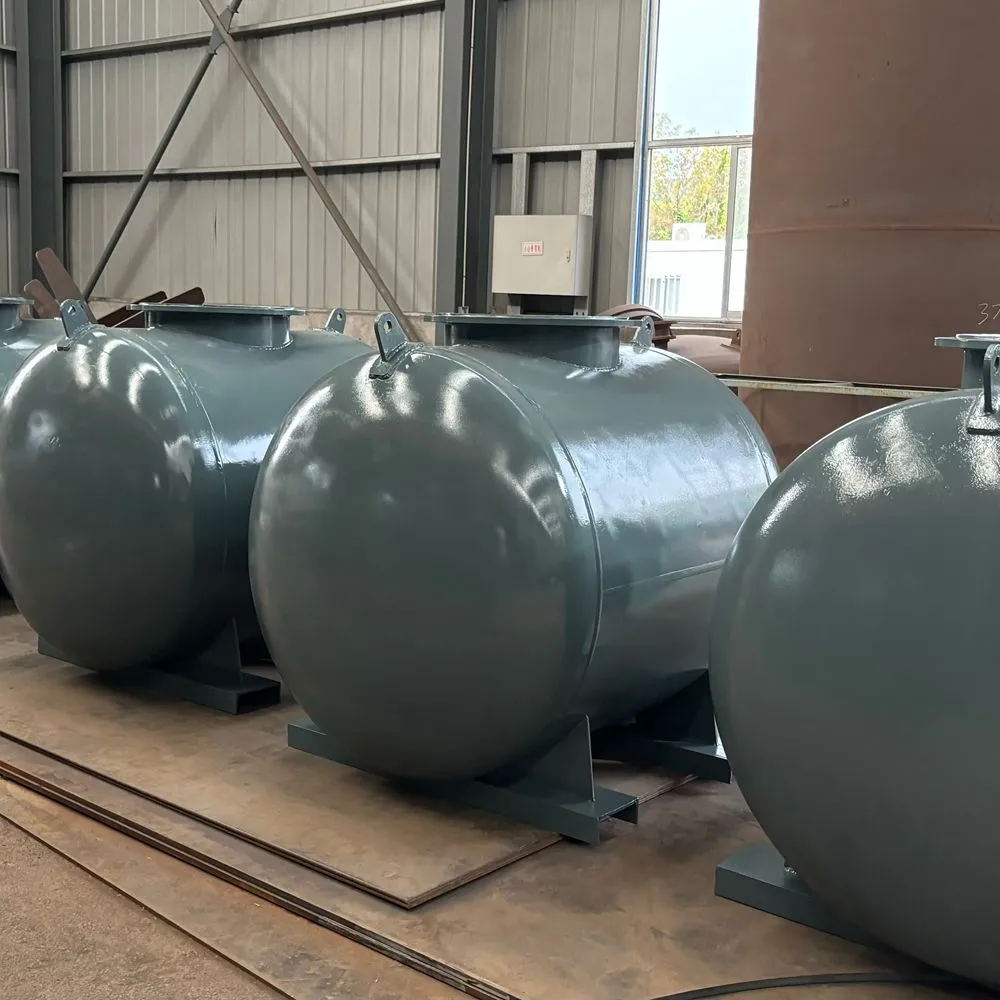

PFA coated receivers are used to collect corrosive liquids, distillates and reaction products in chemical processing systems. With an internal PFA coating, they provide a corrosion-resistant contact surface for compatible process media. Zhuoyan supplies PFA coated equipment for pharmaceutical and fine chemical applications, including receiver vessels designed to connect with reactors and distillation columns.
Process Liquid Collection: These vessels can receive pharmaceutical intermediates, distillation fractions and other process liquids from upstream equipment. Their capacity and connection layout should match the intended collection volume and process arrangement.
PFA Coated Interior: The internal PFA coating helps separate collected materials from the underlying metal surface. This is relevant to applications where corrosion protection and control of potential metal contamination are important. Suitability depends on the chemical medium and operating conditions.
Connection and Installation: Vessel volume, connection ports and installation method can be configured according to the surrounding equipment layout. Correct connection positioning helps integrate the receiver with the associated reaction or separation system.
Optional Accessories: Depending on the design, a sight glass or level transmitter can be considered for observing or monitoring the liquid level.
Pressure and Vacuum: Atmospheric, pressurized or vacuum service requires a vessel design suitable for the intended operating conditions. The allowable pressure or vacuum level should be confirmed for the specific equipment before use.
Coating Inspection: The supplied product information specifies high-voltage spark testing before delivery to check the integrity of the PFA coating. The applicable inspection criteria should be confirmed as part of the equipment specification.
Cleaning and Maintenance: Use cleaning agents and methods compatible with the PFA coating. Avoid tools or procedures that may damage the coated surface. Inspect the interior periodically for visible damage, particularly after cleaning or maintenance work.
Pharmaceutical Processing: Collection of reaction products and pharmaceutical intermediates.
Fine Chemical Production: Receiving distillates and corrosive liquid products from separation processes.
Pilot Plants: Collection and temporary holding of process liquids during small-scale chemical production and testing.
Corrosive Liquid Handling: Intermediate collection and transfer where a compatible corrosion-resistant internal surface is required.
Pressure or vacuum configurations can be discussed according to the process requirements. The vessel structure, design limits and operating conditions must be confirmed for the specific application before manufacture and use.
A sight glass or level transmitter can be considered as an optional accessory, subject to the vessel design and connection requirements.
The connection ports and installation arrangement can be configured according to the process layout. The required connection positions and vessel dimensions should be confirmed for compatibility with the associated equipment.
Zhuoyan provides PFA coated receivers for chemical collection and storage applications. For inquiries about PFA Coated Receivers, discuss the required capacity, connection layout, installation method and operating conditions to determine a suitable equipment configuration.
