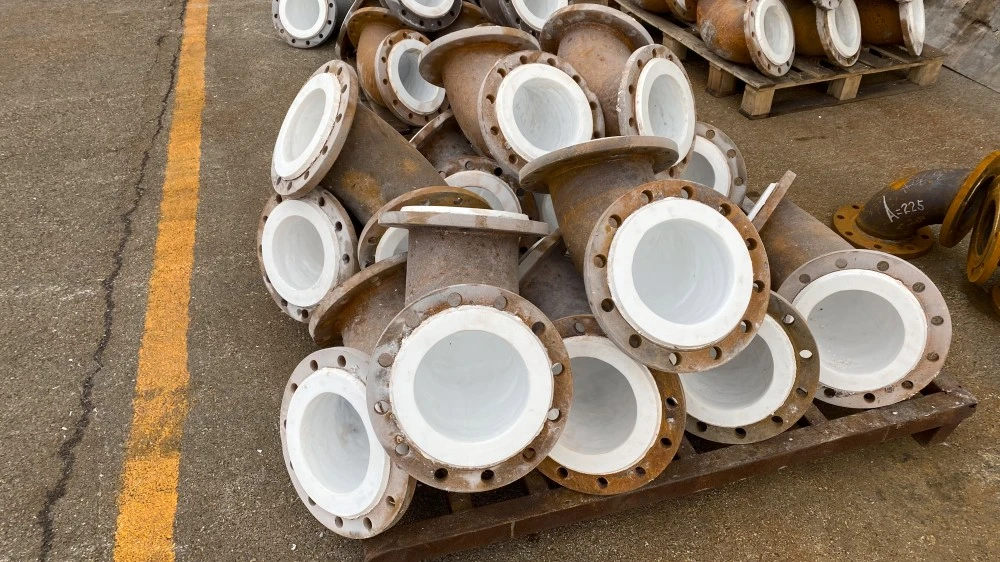

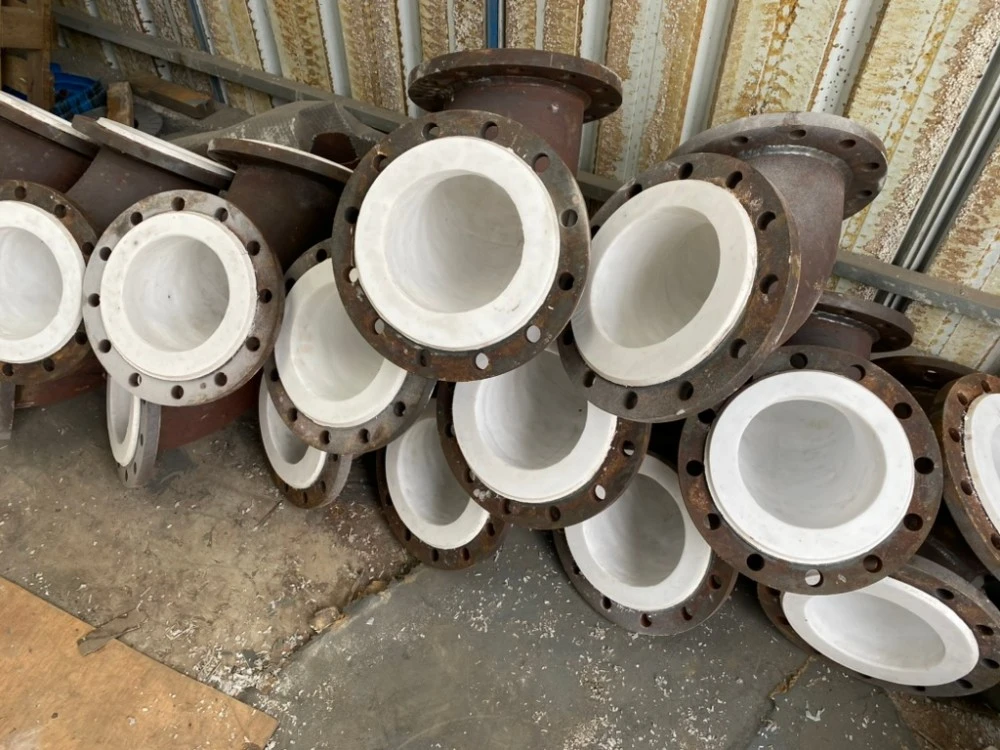

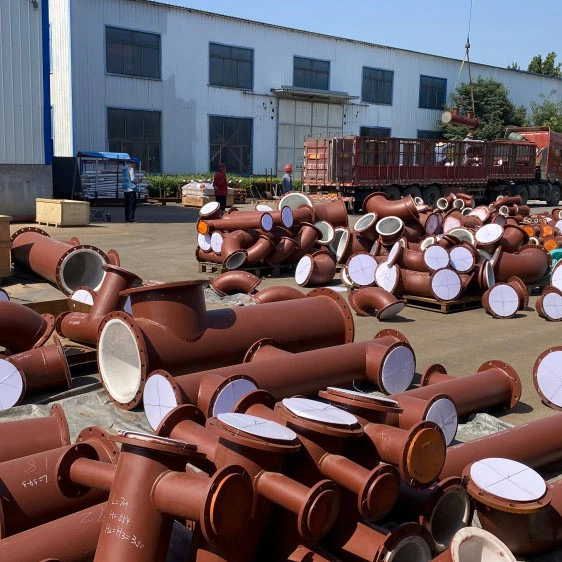

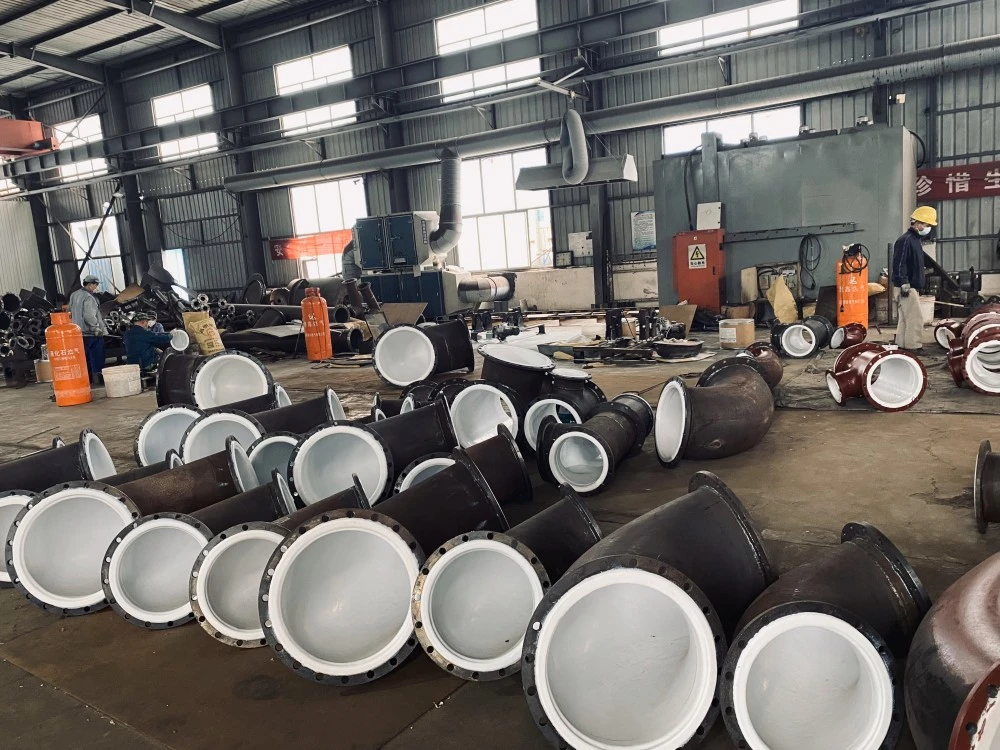

PTFE Lined Industrial Process Pipe Elbow

Zhuoyan, a professional manufacturer from China, provides PTFE lined industrial process pipe elbows designed for pipeline systems requiring corrosion-resistant directional transitions. These fittings combine a steel housing—available in carbon steel or stainless steel variants—with a PTFE inner lining. The steel shell provides mechanical strength and pressure resistance, while the PTFE lining protects against chemical attack from aggressive process media.

Technical Specifications

What is PTFE Lined Industrial Process Pipe Elbow?

A PTFE lined pipe elbow is a pipe fitting used to change the direction of flow in a piping system, with a polytetrafluoroethylene (PTFE) lining applied to the internal surface of the steel elbow body. The PTFE layer serves as a barrier between the conveyed fluid and the metal housing, preventing corrosion of the steel substrate. The elbow is produced by lining a steel elbow shell with PTFE material through processes such as compression molding, isostatic molding, or transfer molding. Standard configurations include 45-degree and 90-degree elbows, with sizes available from DN25 (1 inch) up to DN600 (24 inches).

Applications

Zhuoyan PTFE Lined Industrial Process Pipe Elbows are applied in industrial processes requiring corrosion-resistant piping for aggressive fluid conveyance. Specific application areas include:

· Chemical and petrochemical processing systems handling acids, alkalis, and organic solvents

· Pharmaceutical manufacturing where product purity and corrosion resistance are required

· Power generation facilities, including flue gas desulfurization (FGD) systems

· Environmental engineering applications such as wastewater treatment and exhaust gas handling

· Food and beverage processing where the non-stick, inert surface prevents contamination

Advantages

1. Corrosion Resistance: The PTFE lining provides resistance to most chemical media, with the exception of molten alkali metals, elemental fluorine, and certain aromatic hydrocarbons. This makes the elbow suitable for handling strong acids, alkalis, and organic solvents across a wide concentration range.

2. Temperature Range: The typical operating temperature range for PTFE-lined elbows is -180°C to +160°C, but the specific operating temperature can be determined based on the PTFE grade and operating conditions.

3. Pressure Performance: Within the operating temperature range, PTFE lined elbows can withstand working pressures up to 3.0-4.0 MPa. The steel housing provides mechanical strength to support system pressures while the liner protects against corrosion.

4. Non-Stick Surface: The PTFE inner surface provides a low coefficient of friction, reducing flow resistance and preventing media adhesion to the pipe wall.

Maintenance and Considerations

PTFE lined products differ from unlined steel products in handling and maintenance requirements. The following considerations apply to PTFE lined elbows from Zhuoyan:

Handling and Storage – PTFE lined products should be stored indoors in cool, dry conditions. End boards protecting the flare faces should remain in place until immediately before installation. During transport, nothing should be placed inside the bore as an aid to moving, as this may damage the liner.

Installation – Welding, brazing, soldering, or flame cutting must not be performed on lined products, as these processes may damage the liner and potentially produce toxic gases. Flange bolts should be tightened using a torque wrench in a diagonally opposite sequence, with re-torquing recommended after 24 hours of commissioning and annually thereafter.

Vent Holes – Most PTFE lined products are equipped with vent holes (typically 3-5mm diameter) that serve two purposes: allowing permeated gases to escape to prevent liner collapse, and providing early indication of liner failure. These vent holes must not be blocked by paint or other substances. If any product is observed leaking from the vent holes, it should be removed from service promptly.

Gaskets – Gaskets are not normally required when connecting PTFE lined items to similar products. When connecting to dissimilar materials such as glass, ceramic, or exotic metals, a PTFE envelope gasket or similar device is recommended.

Shipping and Packaging

Zhuoyan's PTFE-lined pipe elbows are packaged to ensure the PTFE lining is protected during transportation and storage. End plates protect the flanged surfaces, and the packaging materials remain in place before installation. Products are typically packaged in wooden crates.

FAQ

Q1: What is the maximum operating temperature for Zhuoyan PTFE lined elbows?

A1: The standard PTFE-lined elbow operates from -180°C to +160°C. Actual temperature limits depend on the PTFE grade, pressure conditions, and the chemical properties of the medium being transported.

Q2: Can PTFE lined elbows be used under vacuum?

A2: Yes. Zhuoyan PTFE-lined elbows can be used under vacuum conditions within the specified temperature range.

Q3: What chemicals are PTFE lined elbows resistant to?

A3: PTFE provides resistance to most chemical media, including strong acids, strong alkalis, and organic solvents. The material is not suitable for molten alkali metals, elemental fluorine, or certain aromatic hydrocarbons.

Q4: Are gaskets required when installing PTFE lined elbows?

A4: Gaskets are not typically required when connecting PTFE lined items to similar PTFE lined products. When connecting to dissimilar materials, a PTFE envelope gasket or equivalent is recommended.
