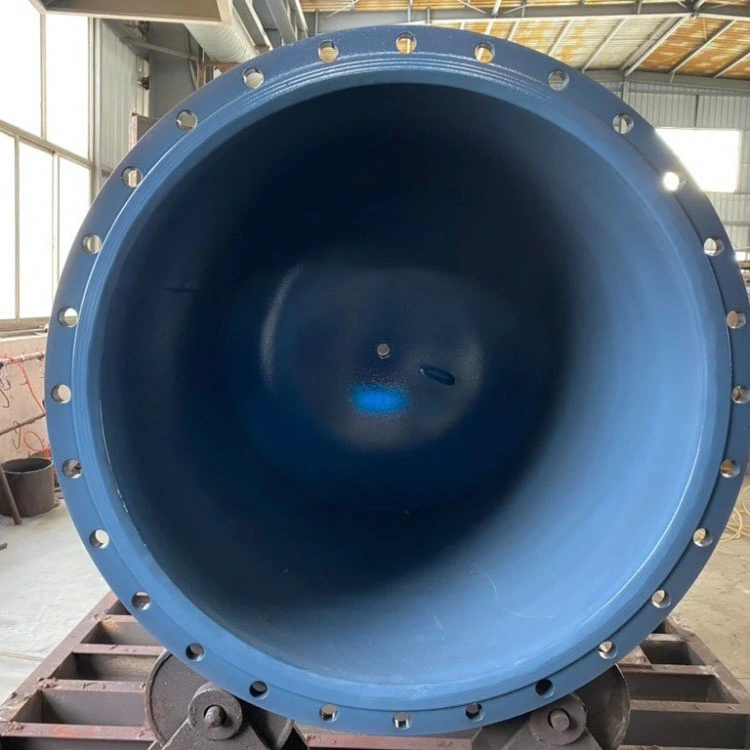

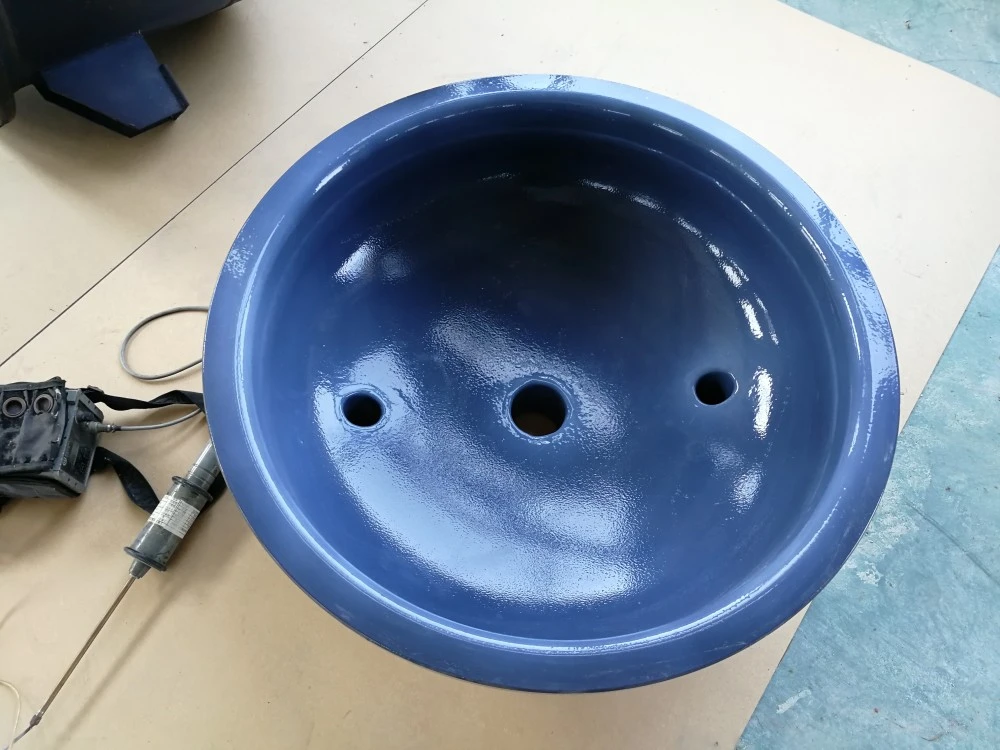

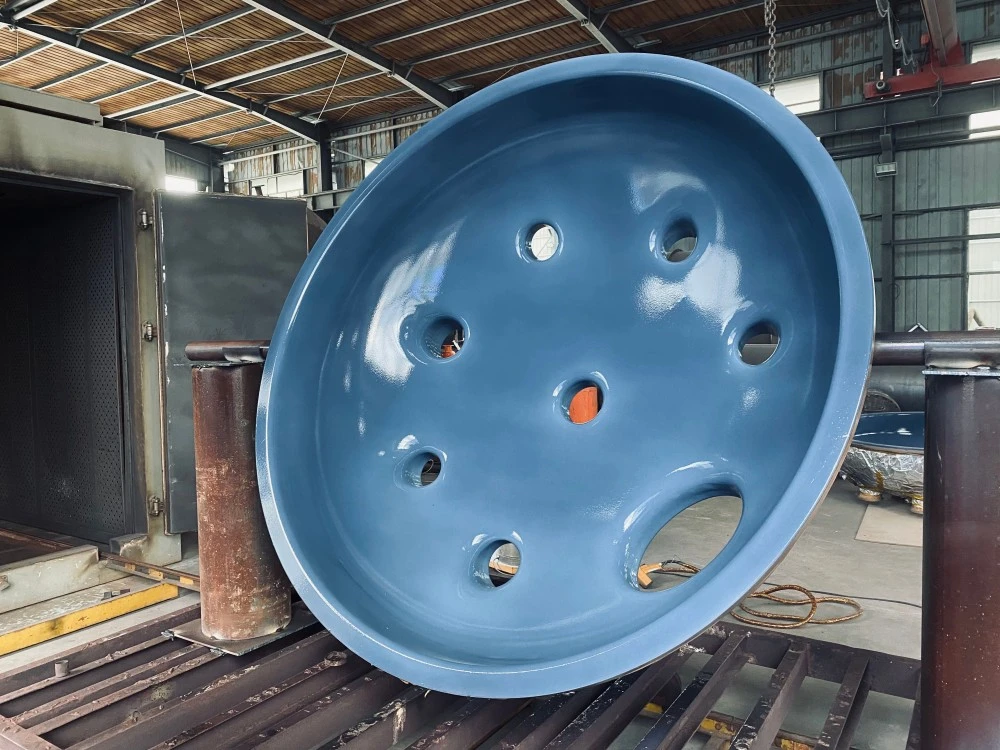

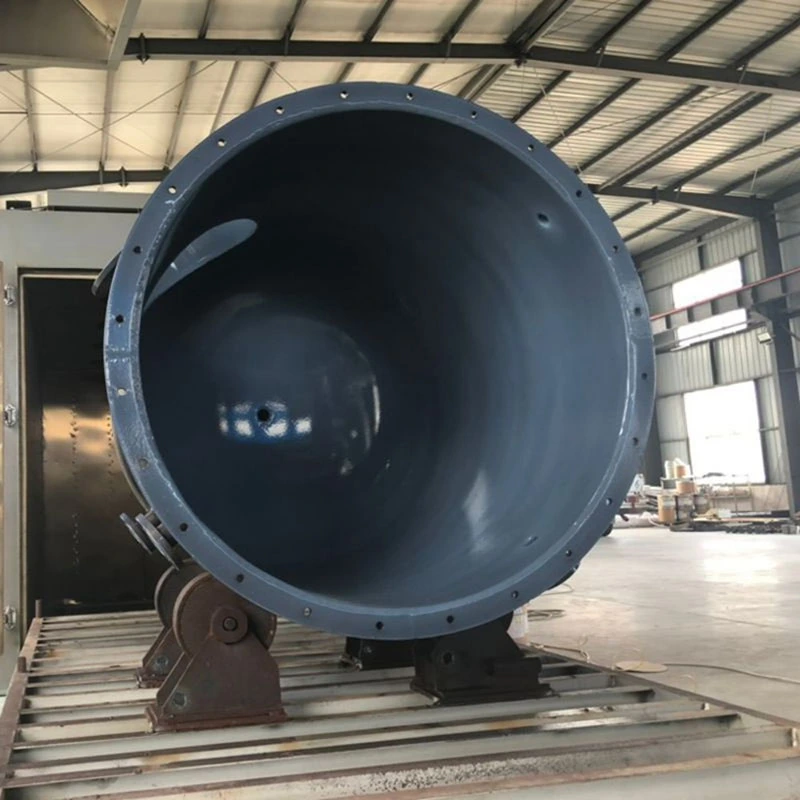

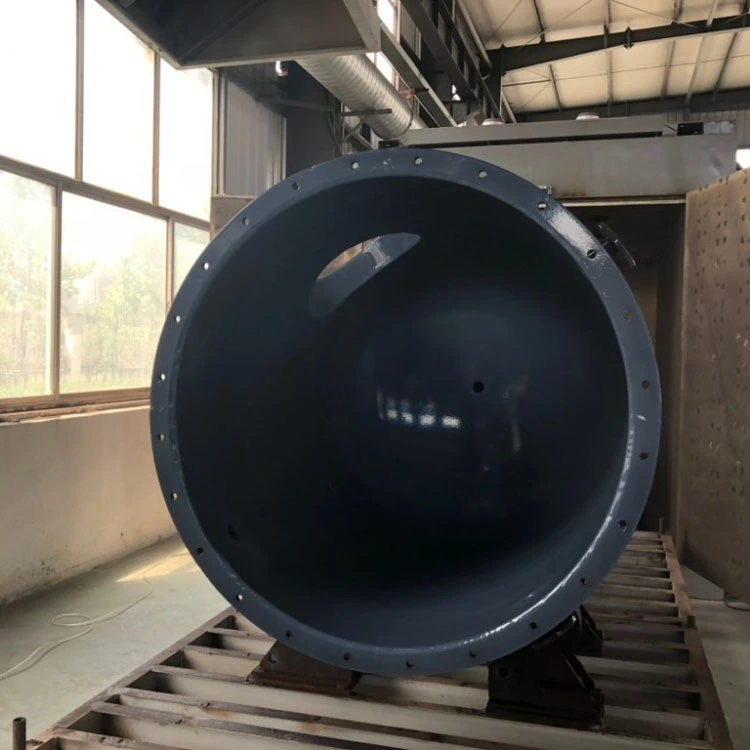

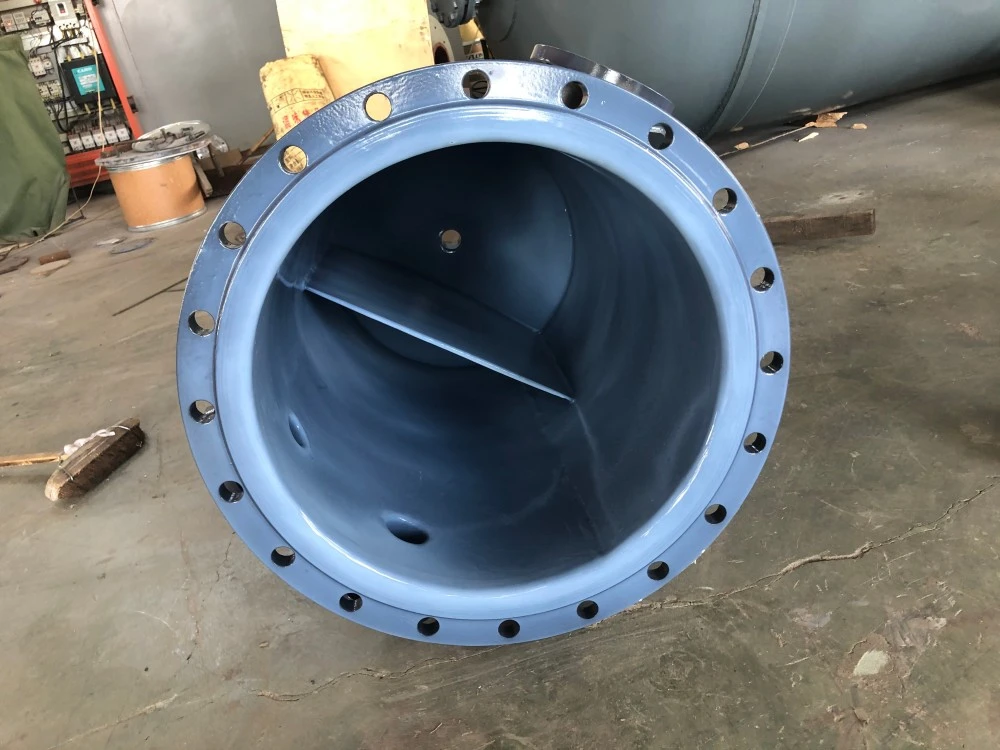

PFA Coated Chemical Mixing Tank

Zhuoyan PFA coated chemical mixing tank offers exceptional corrosion resistance for aggressive chemical environments. Utilizing advanced PFA spray coating technology, Zhuoyan ensures superior protection against strong acids, alkalis, and organic solvents. This durable mixing solution delivers reliable performance, extended service life, and minimized contamination risks. Choose Zhuoyan for your critical chemical mixing applications.

Send Inquiry

Product Description

The Zhuoyan PFA Coated Chemical Mixing Tank is a high-performance industrial vessel engineered for handling highly corrosive materials in demanding chemical processing environments. PFA (Perfluoroalkoxy) coating provides exceptional non-stick properties and chemical inertness, making it an ideal solution for industries including fine chemicals, petrochemicals, semiconductor manufacturing, pharmaceuticals, and environmental protection.

Zhuoyan specializes in advanced fluoropolymer coating technologies, offering custom-engineered solutions that meet rigorous international standards. With a strong commitment to quality and customer satisfaction, Zhuoyan provides comprehensive anti-corrosion solutions for critical equipment.

Whatis a PFA Coated Chemical Mixing Tank?

A PFA coated chemical mixing tank is a steel vessel with a sprayed PFA layer that combines the mechanical strength of metal with exceptional chemical resistance. The PFA coating creates a protective barrier against corrosion, preventing reactive chemicals from contacting the metal substrate. This tank is designed for mixing, blending, heating, and storing aggressive chemicals that would otherwise damage conventional equipment.

Spray Coating Process

Zhuoyan employs a rigorous multi-step spray coating process to ensure superior quality and durability:

Step	Description
1. Material Inspection	Inspect shell welds and surface quality
2. Grinding	Remove burrs, finish weld seams
3. High-Temperature Degreasing	Bake at high temperature to remove surface oils
4. Sandblasting	Sandblast to Sa2.5 grade for enhanced coating adhesion
5. Surface Cleaning	Thoroughly remove sandblasting dust
6. Preheating	Preheat metal substrate to spraying temperature
7. Primer Application	Apply primer layer for enhanced bonding
8. Primer Drying	Cure primer at high temperature
9. Topcoat Application (6 repeated coats)	Spray PFA multiple times with sintering after each coat
10. High-Temperature Sintering	Metallurgical bonding of coating to substrate
11. Appearance Inspection	Visual inspection of coating quality
12. Coating Thickness Measurement	Gauge measurement of coating thickness
13. Spark Testing	High-voltage spark test for pinhole defects
14. Adhesion Testing	Coating bond strength test
15. Inner Surface Cleaning	Final cleaning of finished product
16. Packaging	Pearl cotton wrap + wooden crate/steel frame

Quality Inspection & Certification

Zhuoyan implements comprehensive quality control throughout the manufacturing process:

· Raw material traceability and verification

· In-process inspection at each coating stage

· Visual inspection for surface defects

· Non-destructive testing (electrical discharge testing for pinholes)

· Coating thickness measurement with calibrated instruments

· Adhesion testing to verify bond strength

· Dimensional verification

Packaging & Delivery

· Packaging: Protective wrapping with wooden crates for sea freight; customized packaging available for specific requirements

· Shipping: FOB, CIF, CFR options; Sea, Rail, or combined transportation

· Delivery Time: Typically 30–40 days depending on specifications

· Shipping Methods: LCL, FCL, Flat Rack, Bulk, Express available

After-Sales Service

· Installation drawings and manuals provided

· Technical guidance via voice or video support

· Warranty period: 12 months from shipment

· Spare parts availability

· Customized maintenance plans upon request

FAQ

Q1: What is the difference between PFA and PTFE coating?

A1: While both are fluoropolymers, PFA offers better melt-processability and typically provides a smoother, more pinhole-free coating. PFA is also preferred for high-purity applications due to lower extractable levels.

Q2: What is the maximum operating temperature?

A2: PFA coated tanks can operate up to 260°C, depending on the specific PFA grade and application conditions.

Q3: Can the tank be customized to specific sizes?

A3: Yes, Zhuoyan offers custom engineering services for tanks ranging from 10L to 50,000L.

Q4: How is the coating quality verified?

A4: Zhuoyan conducts electrical discharge testing (spark testing) to detect pinholes, coating thickness measurement, and adhesion testing to ensure quality.
