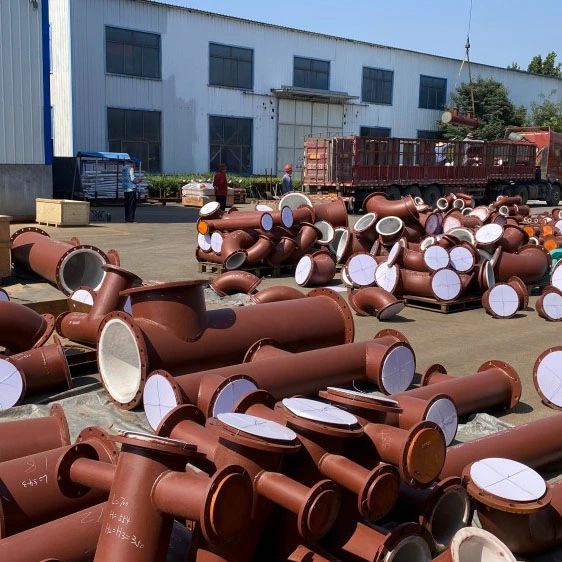

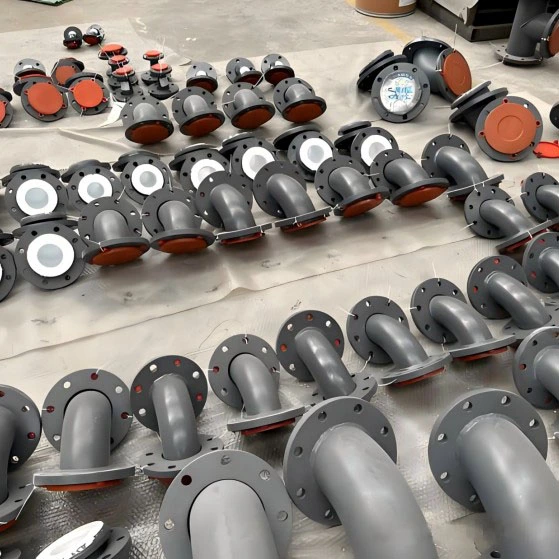

PTFE Lined Elbows are used to change the flow direction of corrosive liquids, gases, and chemical slurries in industrial piping systems. Zhuoyan is a China-based manufacturer and supplier of fluoropolymer-lined equipment and fittings. These elbows are commonly installed with PTFE-lined pipelines in chemical and pharmaceutical process systems.
The internal PTFE lining helps protect the steel pipe body from corrosive media, including acids and alkalis. Zhuoyan provides customization options for bending angle, diameter, lining thickness, and flange connection type to match different pipeline designs. Standard 45° and 90° configurations are available, while other angles can be customized according to project requirements.
Standard 45° and 90° configurations are available. Other angles can be customized according to the pipeline layout and connection requirements.
Thicker PTFE lining options are available for slurry applications. Suitability depends on the slurry composition, particle characteristics, operating conditions, and required service life.
PTFE Lined Elbows can be configured with compatible flange connections for use with PTFE-lined pipelines. Please provide the pipeline dimensions and flange standard to confirm compatibility.
Contact us for specifications and pricing for PTFE-lined elbows. When making an inquiry, provide the required bending angle, diameter, lining thickness, flange connection type, and conveyed medium so the appropriate configuration can be evaluated.
