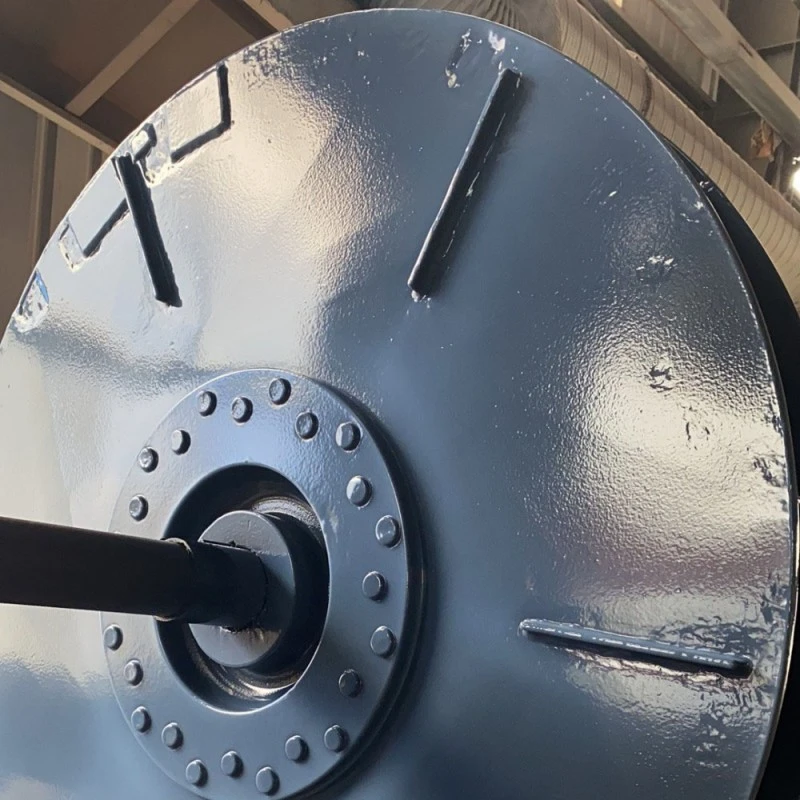

PTFE Lined Impellers are installed on agitator shafts to mix materials inside PTFE-lined reactors and mixing tanks. Zhuoyan is a China-based manufacturer and supplier of PTFE Lined Impellers for pharmaceutical production, fine chemical processing, and corrosive mixing applications.
The impeller surfaces are covered with PTFE lining to help protect the underlying structure from compatible acids, alkalis, and oxidizing media. Blade shape, diameter, and mounting structure can be customized according to the mixing tank dimensions, material properties, and installation requirements.
The appropriate impeller design depends on the material being processed, the required mixing result, and the dimensions of the vessel. Zhuoyan offers three main configurations:
These impeller types serve different mixing purposes and are not interchangeable in every application. When selecting a configuration, consider the liquid viscosity, solid content, tank diameter, installation clearance, and intended mixing result.
The PTFE lining forms a protective barrier between the process medium and the underlying impeller structure. It is intended for use with compatible corrosive media, including acids, alkalis, and oxidizing chemicals. Chemical compatibility should be confirmed according to the medium composition, concentration, operating temperature, and process conditions.
Before shipment, each PTFE Lined Impeller undergoes high-voltage spark pinhole inspection to check lining integrity. For replacement projects, the existing impeller dimensions and mounting structure should also be checked to ensure that the new component matches the agitator shaft and mixing vessel.
Shandong Zhuoyan New Materials Co., Ltd. provides customization options to accommodate different mixing equipment and process requirements:
For customized orders, provide the vessel dimensions, required impeller diameter, shaft connection details, and material properties. Existing drawings or measurements can help clarify the required configuration before production.
Paddle, turbine, and anchor impellers are available. The appropriate type depends on the medium properties, mixing objective, vessel dimensions, and operating conditions.
Yes. The impeller is detachable and can be replaced separately from the agitator shaft. Before ordering, confirm the impeller diameter, mounting structure, and connection dimensions.
An anchor-type impeller may be suitable for high-viscosity media, particularly in applications requiring material movement near the vessel wall. The selection should account for the viscosity, tank dimensions, operating speed, and agitator capacity.
Please provide the required blade type, impeller diameter, mounting dimensions, tank or reactor dimensions, medium properties, and mixing requirements. Drawings or measurements of an existing impeller can also help confirm the specifications.
Contact us for PTFE Lined Impellers tailored to your mixing equipment. Provide the required blade configuration, dimensions, mounting details, and process conditions to discuss a suitable design and request a factory quotation.
