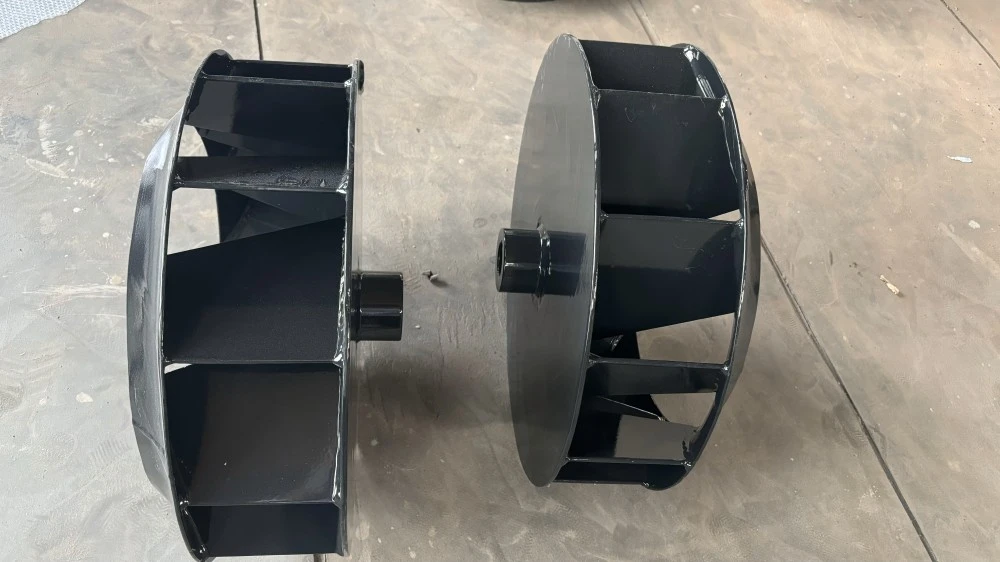

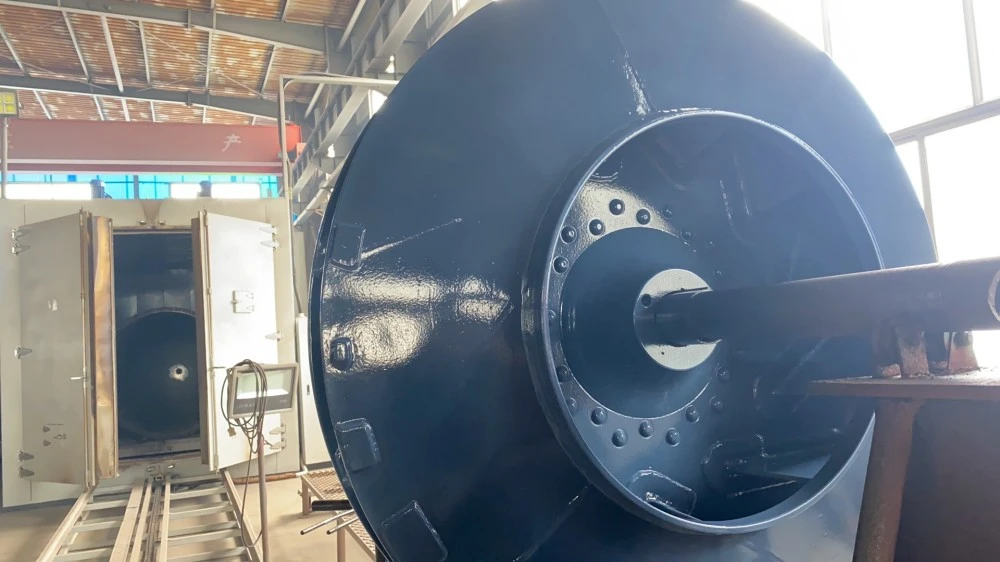

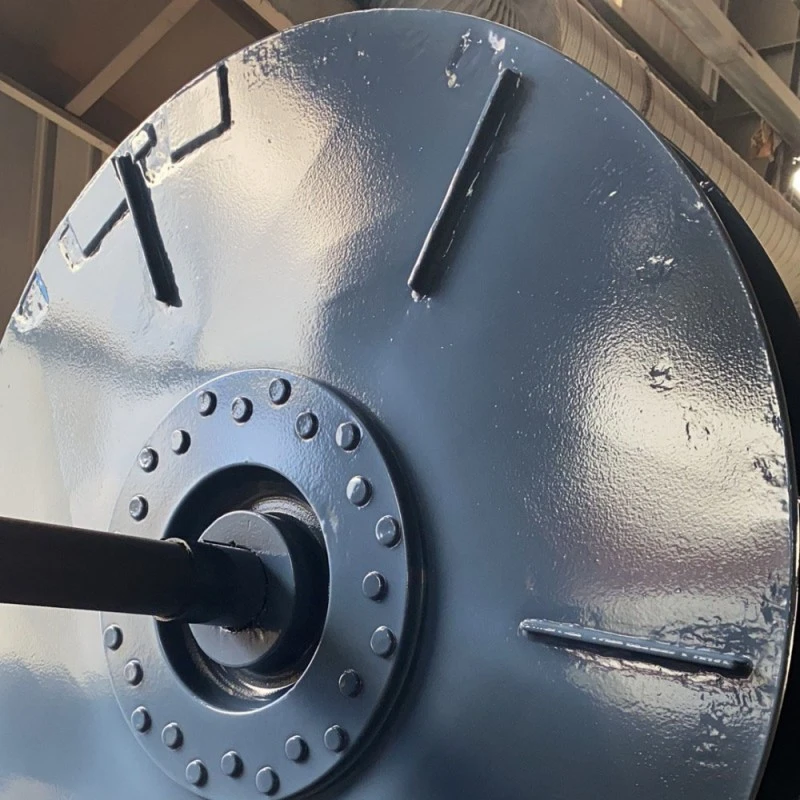

PTFE Lined Pharmaceutical Agitation Impeller

The Zhuoyan PTFE Lined Pharmaceutical Agitation Impeller is a specialized mixing component manufactured for pharmaceutical and chemical processing applications. The product consists of a metal substrate, typically carbon steel or stainless steel, with a PTFE lining applied to all wetted surfaces. This construction provides the mechanical strength of metal with the chemical resistance of PTFE, enabling the impeller to function in corrosive environments while protecting product purity. Zhuoyan's manufacturing process includes surface preparation, adhesive application, and PTFE sheet lining with seam welding, followed by quality inspection . The impeller serves applications including pharmaceutical intermediate synthesis, API (active pharmaceutical ingredient) production, and fine chemical processing.

What is?

A PTFE Lined Pharmaceutical Agitation Impeller is a rotating mixing component used in pharmaceutical reactors and vessels. The impeller features a PTFE (polytetrafluoroethylene) lining bonded to a metal substrate. This lining creates a protective barrier that prevents direct contact between the process fluid and the metal surface, eliminating the risk of metal contamination and corrosion. The PTFE lined agitator is designed for batch and continuous mixing operations where chemical resistance and product purity are required.

Advantages and Features

Chemical Inertness: The PTFE lining is non-reactive with acids, bases, solvents, and pharmaceutical intermediates, ensuring no contamination of the batch .

Corrosion Resistance: The lining protects the metal substrate from corrosive attack, extending service life compared to unlined metal agitators .

Non-Stick Surface: PTFE's low surface energy reduces material adhesion, facilitating cleaning and minimizing cross-contamination risk between batches .

Mechanical Strength: The metal substrate provides structural integrity, while the PTFE lining offers chemical protection, combining durability with corrosion resistance.

Customizable Design: Available in various blade configurations (paddle, frame, turbine) and sizes to match specific reactor geometries and mixing requirements .

Quality Assurance: Each impeller undergoes spark testing to verify lining integrity, with inspection reports available upon request .

Specification Table

Manufacturing Process

The manufacturing process for Zhuoyan PTFE Lined Pharmaceutical Agitation Impellers follows systematic procedures to ensure quality and performance.

1. Design and Engineering: The impeller is designed according to customer specifications, including blade type, size, and installation method. Drawings are reviewed and approved before production .

2. Metal Substrate Fabrication: The metal core (carbon steel or stainless steel) is manufactured according to design specifications, including machining and welding of components.

3. Surface Preparation: The metal surface undergoes grit blasting to achieve the required surface roughness (grade 2.5 or above) for optimal PTFE adhesion .

4. Adhesive Application: A specialized PTFE adhesive is applied to the prepared surface in multiple coats (minimum 3 coats) to create a bonding layer .

5. PTFE Lining Installation: PTFE sheets are cut to size and applied to the impeller surfaces, with particular attention to corners and seams. Seams are joined using V-groove welding techniques .

6. Quality Inspection: Completed impellers undergo spark testing at 25kV with the probe moving at speeds not exceeding 50 mm/sec to verify lining integrity and detect any defects .

Application Areas

The Zhuoyan PTFE Lined Pharmaceutical Agitation Impeller is suitable for applications requiring corrosion resistance and product purity.

Pharmaceutical Industry: API synthesis, pharmaceutical intermediate production, formulation mixing, and storage tank agitation where contamination control is essential .

Chemical Processing: Mixing of corrosive chemicals, acid-base reactions, and solvent processing .

Fine Chemical Manufacturing: Production of specialty chemicals, pigments, and additives where purity is required.

Water Treatment: Agitation in treatment processes involving corrosive agents .

Shipping and Packaging

Zhuoyan ensures proper packaging and shipping for PTFE Lined Pharmaceutical Agitation Impellers to maintain product integrity during transportation.

Packaging: Each impeller is protected with foam or bubble wrap and secured in a wooden case or suitable container to prevent movement and damage during transit.

Documentation: Each shipment includes a packing list, inspection certificate (spark test report), and installation instructions upon request.

Shipping: Products are shipped from Shandong, China. Lead times vary based on customization requirements, with standard configurations available for faster delivery.

FAQ

Q1: What is the maximum operating temperature for the PTFE lined impeller?

A1: The maximum standard operating temperature is 160°C, depending on the PTFE grade and application conditions.

Q2: Can the impeller be customized for non-standard reactor sizes?
A2: Yes. Zhuoyan offers customization for blade configuration, dimensions, shaft length, and installation method to match specific reactor requirements .

Q3: How is the PTFE lining quality verified?
A3: Each impeller undergoes spark testing at 25kV to detect any lining defects. Inspection reports are available upon customer request .

Q4: What maintenance is required for the PTFE lined impeller?
A4: Regular visual inspection for lining damage and periodic spark testing are recommended. The PTFE surface should be cleaned after each batch to prevent material buildup .

Q5: Is the PTFE lining suitable for all types of pharmaceutical solvents?
A5: PTFE is chemically inert and compatible with most acids, bases, and organic solvents. For specific solvent compatibility, please consult Zhuoyan with your process conditions .
