PFA Coated Industrial Chemical Stirring Vessel

Zhuoyan PFA coated industrial chemical stirring vessels are engineered to address the challenges of handling corrosive chemicals in production environments. These vessels feature a carbon steel or stainless steel substrate with a sprayed PFA (perfluoroalkoxy alkane) coating applied to all wetted surfaces. PFA is a fluoropolymer that offers chemical resistance, heat resistance, and non-stick properties. The coating system, applied through a multi-layer spray process, creates a dense, low-porosity barrier that protects the underlying metal from corrosion while preventing product adhesion and contamination. These vessels are suitable for a range of mixing, reaction, and storage applications where standard stainless steel equipment may suffer from chemical attack.

What Is a PFA Coated Stirring Vessel?

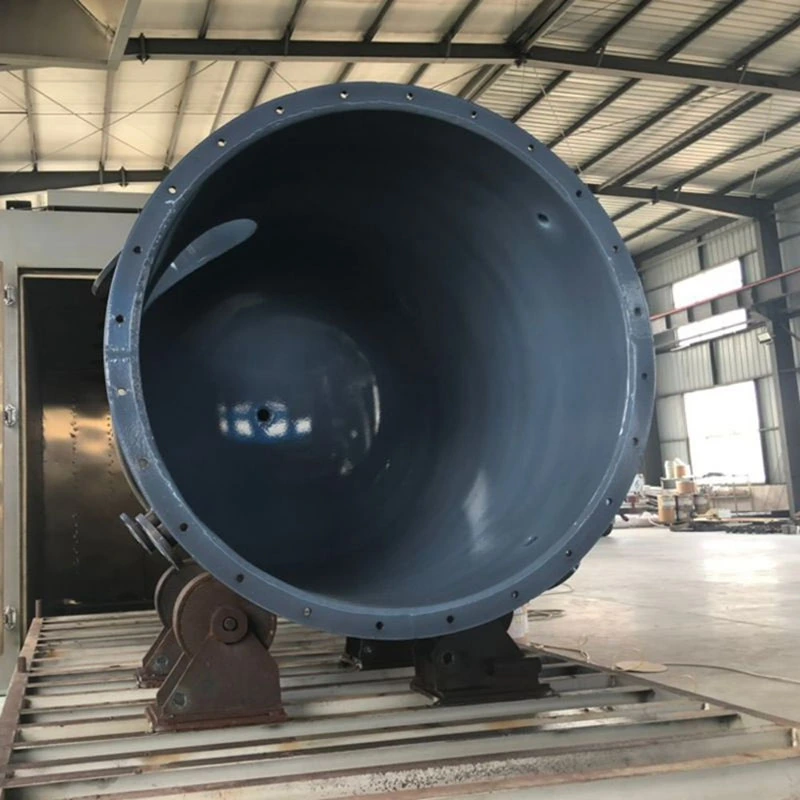

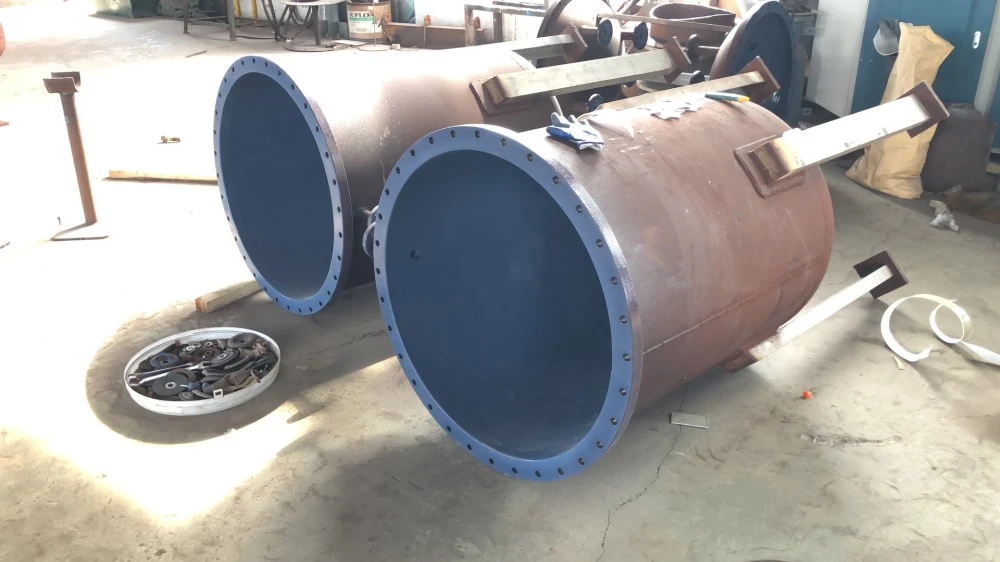

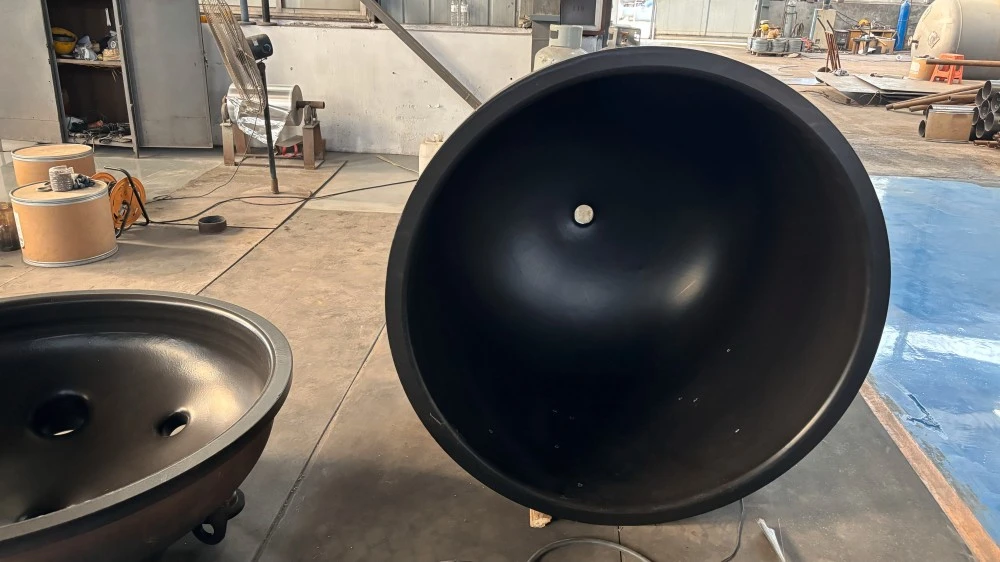

A PFA coated industrial chemical stirring vessel is a tank or reactor whose interior surfaces have been coated with PFA fluoropolymer to provide protection against corrosive media. The vessel typically includes:

· A steel body (carbon steel or stainless steel) as the structural substrate

· A spray-applied PFA coating on all internal surfaces, including the vessel wall, bottom, and agitator components

· An agitation system for mixing or stirring the process contents

· Optional heating/cooling jacket for temperature control

The PFA coating serves as a barrier between the corrosive process chemicals and the steel substrate, extending equipment service life in applications involving acids, alkalis, solvents, and other aggressive media. PFA is known for its high melting flow characteristics during application, which results in a smooth, dense coating with fewer pinholes compared to other fluoropolymer coatings. The coating can be applied in thicknesses ranging from 100 μm to 1.0 mm depending on the application requirements

Specifications

Working Principle

Material Construction:

The vessel consists of a steel substrate (typically carbon steel or stainless steel) that provides structural strength and pressure containment capability. The PFA coating is applied to all surfaces that will contact the process media, including the vessel interior wall, bottom, agitator shaft, and impeller surfaces.

Application Process:

The PFA coating is applied through a multi-step spray process to ensure proper adhesion and coating integrity:

1. Surface Preparation: The steel substrate undergoes grinding, high-temperature degreasing, and surface cleaning to remove contaminants

2. Sandblasting: The surface is sandblasted to achieve the required surface profile for coating adhesion

3. Primer Application: A primer coat is applied to promote bonding between the steel substrate and the PFA topcoat

4. Topcoat Application: Multiple layers of PFA are applied by spray coating. Each layer is sintered at high temperature to melt and flow the PFA particles into a dense, continuous film

5. Quality Testing: The finished coating undergoes electrical discharge testing (spark testing) to detect any pinholes or coating defects, along with adhesion testing and coating thickness inspection

The resulting coating provides a non-porous, chemically resistant barrier that is bonded to the steel substrate. During operation, the agitator rotates to mix the vessel contents, and the PFA coating prevents chemical attack on both the vessel wall and the agitation components.

Applications

PFA coated industrial chemical stirring vessels are widely used in industries requiring corrosion-resistant processing equipment:

· Chemical Industry: Processing of acids, alkalis, solvents, and corrosive intermediates

· Pharmaceutical Industry: Synthesis and mixing of active pharmaceutical ingredients requiring high purity

· Fine Chemical Manufacturing: Production of specialty chemicals and intermediates

· Semiconductor Industry: Processing of ultrapure chemicals and etchants

· Pulp and Paper: Corrosive chemical handling applications

Typical applications include:

· Mixing and blending of corrosive liquids

· Chemical reactions involving strong acids or alkalis

· Storage of aggressive chemicals

· Polymerization processes

· Purity-sensitive processing where metal contamination must be avoided

Shipping and Packaging

Zhuoyan ensures that all PFA coated industrial chemical stirring vessels are properly prepared for shipment to prevent damage to the coating and ensure safe delivery.

Preparation for Shipping

· The vessel interior is thoroughly cleaned and inspected after coating application

· All openings are sealed with protective covers to prevent contamination

· The agitator components are secured to prevent movement during transit

· Critical areas are protected with cushioning material

Packaging

· Vessels are packaged with protective wrapping to guard against moisture and environmental contaminants

· Flanges and connection ports are covered with protective caps

· Wooden or steel crates are used for larger vessels, with proper bracing to prevent shifting

Transportation

· Vessels are shipped by sea freight, land transport, or air freight as required

· Large vessels may be shipped as break-bulk cargo

· Customers are notified of shipping schedules and provided with tracking information

FAQ

Q1: What chemicals does the PFA coating resist?

A1: PFA resists a wide range of chemicals, including strong acids (hydrochloric acid, sulfuric acid, nitric acid), strong alkalis, organic solvents, and most chemical media.

Q2: What is the maximum operating temperature of the PFA spray can?

A2: The PFA coating can be used at temperatures up to 260°C (500°F).

Q3: How is coating quality verified?

A3: The coating undergoes multiple quality control tests, including visual inspection, coating thickness measurement, adhesion testing, and spark testing (to detect pinholes or defects).

Q4: Can the coating be repaired if damaged?

A4: Minor coating damage can be repaired by trained technicians using PFA repair materials. Severe damage may require the can to be returned for recoating. The steel substrate is protected by the coating, and prompt repair of any damage is recommended.

Q5: What agitator designs are available?

A5: Agitator configurations can be customized to meet application requirements, including anchor agitators, turbine agitators, propeller agitators, and special designs. The agitator shaft and impeller are also treated with PFA spraying to achieve comprehensive corrosion protection.
