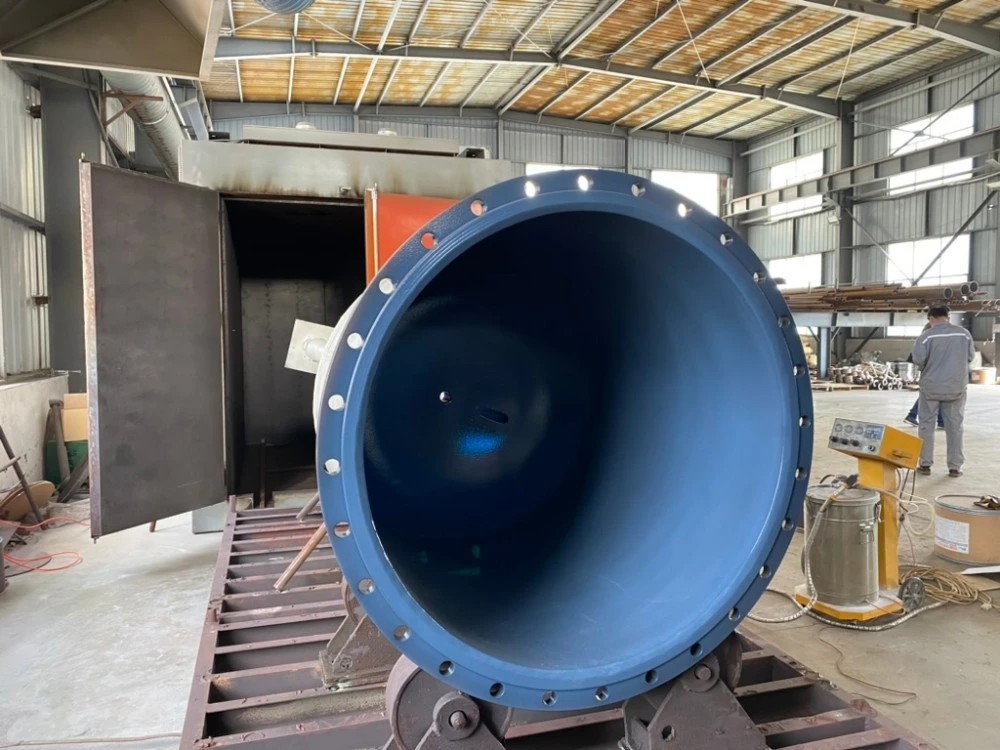

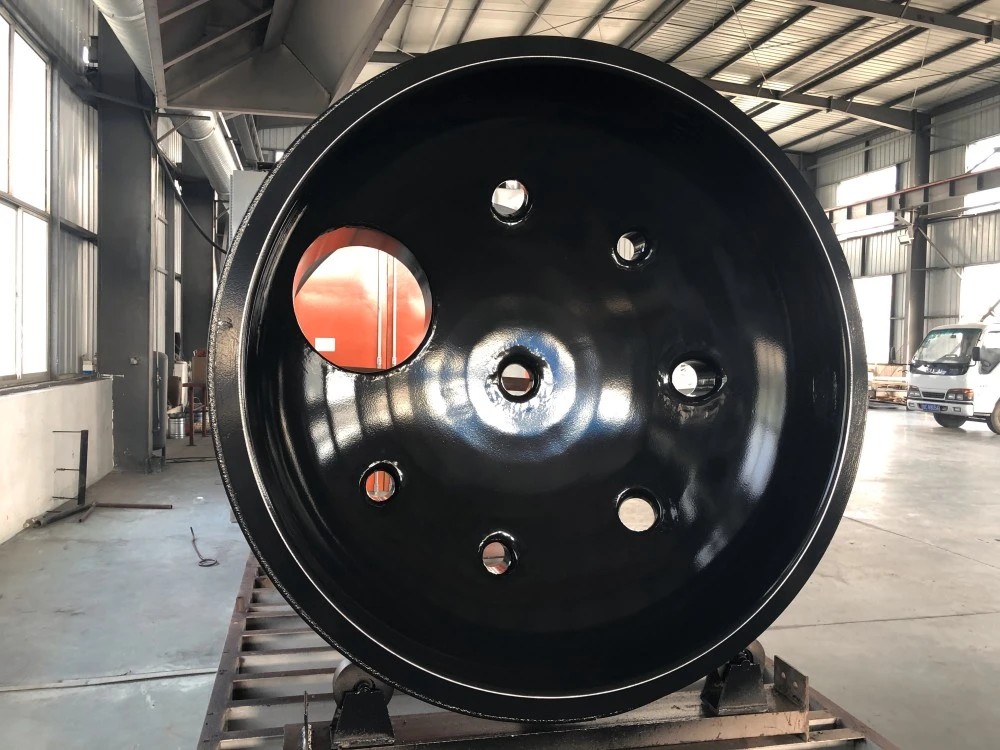

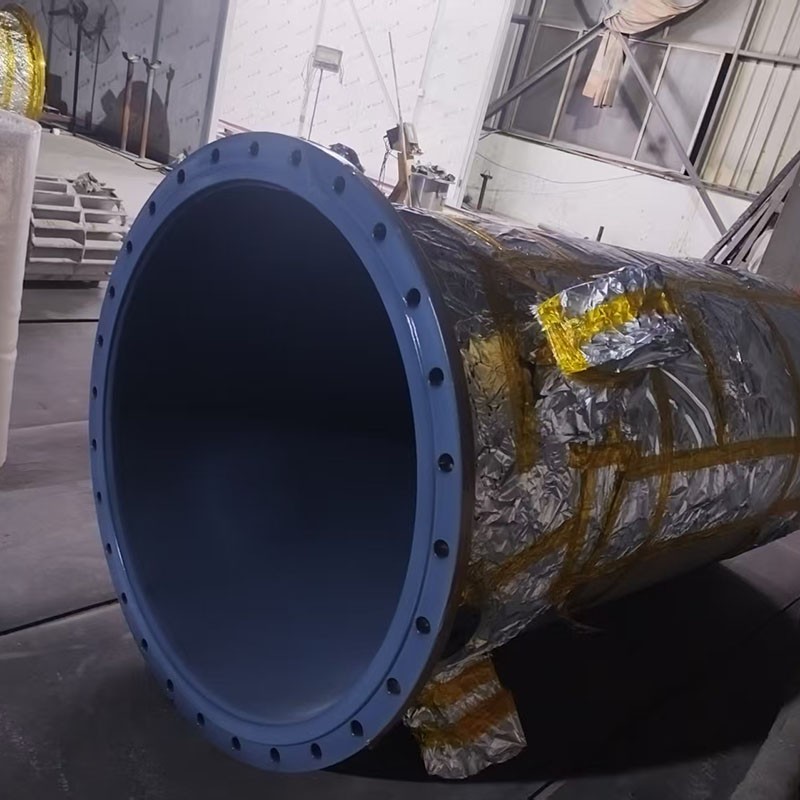

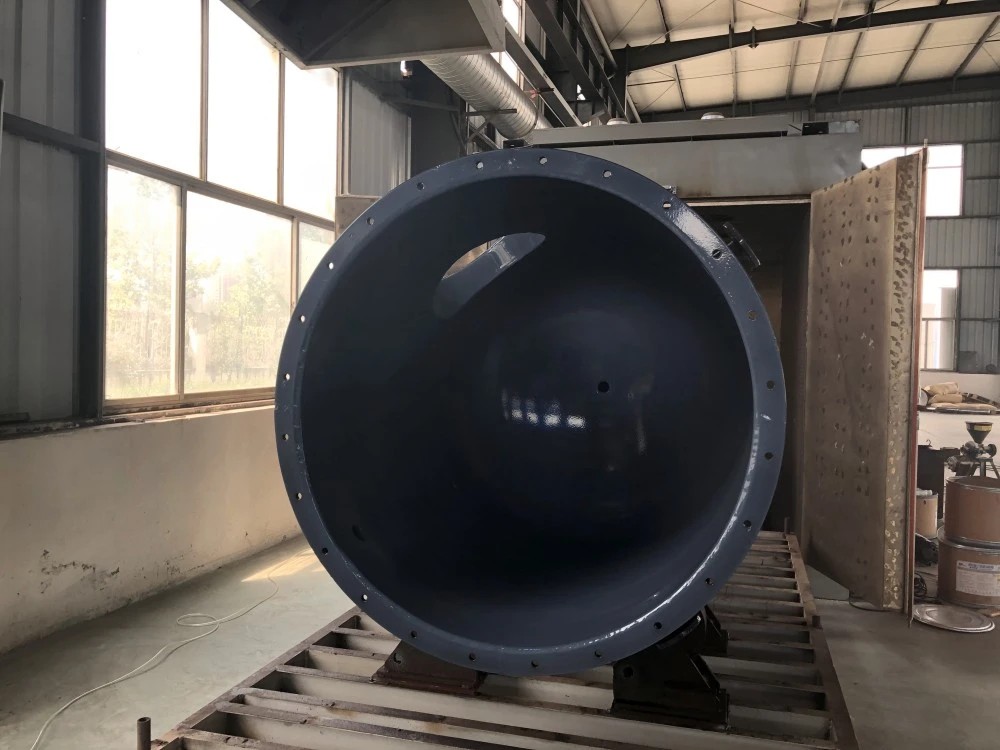

PFA Coated Chemical Intermediate Receiver Vessel

Zhuoyan proudly presents its PFA Coated Chemical Intermediate Receiver Vessel, a critical anti-corrosion solution for the chemical and pharmaceutical intermediate industries. Manufactured by the renowned Zhuoyan, this vessel utilizes an advanced electrostatic spraying process to apply a uniform, non-porous PFA (Perfluoroalkoxy) coating on the inner surface. This coating ensures exceptional resistance to high temperatures, highly corrosive chemicals, and vacuum conditions. As a "Specialized, Refined, and Innovative" enterprise in Shandong Province, Zhuoyan ensures superior coating performance and significantly extends equipment life through precise temperature control technology (furnace temperature difference ≤ ±3℃), making it a reliable anti-corrosion solution.

Send Inquiry

Product Description

What is a PFA Coated Chemical Intermediate Receiver Vessel?

The PFA Coated Chemical Intermediate Receiver Vessel offered by Zhuoyan, a professional PFA Coated Equipments manufacturer from China, is a crucial piece of equipment designed for the chemical, pharmaceutical, and fine chemical industries. Its primary function is to safely collect, temporarily store, and transfer intermediate products during chemical synthesis. The key advantage of the Zhuoyan unit lies in its internal lining—a high-performance PFA (Perfluoroalkoxy) coating. This coating combines the mechanical strength of the metal substrate (typically carbon or stainless steel) with the outstanding chemical inertness of PFA, ensuring product purity and operational safety, even when handling aggressive or high-purity media.

Principle and Spraying Process

Zhuoyan employs an industry-leading electrostatic powder spraying process to ensure a robust bond between the PFA coating and the substrate. The core principle is using electrostatic attraction to uniformly attract charged PFA powder onto the inner wall of the vessel, followed by high-temperature sintering to form a dense protective layer.
We strictly adhere to a comprehensive anti-corrosion spraying procedure: starting with Material Inspection, Grinding, and High-Temperature Degreasing; followed by Sandblasting to enhance adhesion; after Preheating, we apply a specialized Primer, followed by High-Temperature Sintering; finally, the Topcoat undergoes repeated spraying and sintering (up to 6 layers) to ensure a dense, pore-free coating. Before delivery, every unit passes rigorous visual inspection, coating thickness measurement, electrical discharge (pinhole) testing, and adhesion testing to guarantee zero-defect quality.

Key Advantages

Choosing Zhuoyan's PFA Coated Receiver Vessel provides you with these core advantages:

1. Exceptional Corrosion Resistance: PFA is virtually immune to chemical attack, resisting strong acids, alkalis, organic solvents, and various corrosive media.

2. High-Temperature & Vacuum Resistance: The PFA coating offers a continuous service temperature of up to 260°C (peak 290°C) and withstands harsh vacuum conditions, performing reliably under high-temperature vacuum, thermal shock, and rapid temperature changes.

3. High Purity and Non-Contamination: The non-stick, smooth surface prevents material adhesion and cross-contamination, making it ideal for high-purity applications in the pharmaceutical and electronics industries.

4. Superior Adhesion and Anti-Permeation: Through rigorous sandblasting pretreatment and multiple sintering cycles, the coating exhibits excellent adhesion to the substrate and significantly reduced permeation.

5. Backed by Zhuoyan's Patented Technology: Leveraging over 35 patents, including the "Anti-wear PTFE Sprayed Anti-corrosion Equipment," the vessel's wear resistance and corrosion protection are enhanced.

Technical Specifications

Product Name	PFA Coated Chemical Intermediate Receiver Vessel
Brand	Zhuoyan
Shell Material	Carbon Steel, Stainless Steel (Customizable)
Inner Coating	PFA (Perfluoroalkoxy)
Spraying Process	Electrostatic Powder Coating + High-Temperature Sintering
Coating Thickness	0.8mm - 1.0mm or customized per request
Service Temperature	Continuous use ≤ 260°C
Operating Conditions	Atmospheric, Vacuum (Negative Pressure)
Capacity Range	Customizable according to client requirements
Quality Testing	Spark (Pinhole) Test, Coating Thickness Test, Adhesion Test

Application Areas

This vessel is widely used in industrial production requiring high corrosion resistance and purity, including:

1. Fine Chemicals: Storage and transfer of strong acids, alkalis, solvents, and reaction intermediates.

2. Pharmaceutical Intermediates: Prevents metal ion contamination of high-value pharmaceutical intermediates during transfer.

3. Electronic Chemicals: Storage and transport of high-purity etching solutions, cleaning agents, etc..

4. Pesticides and Dyes: Handling highly corrosive raw materials and finished products.

5. New Energy Materials: Applications in the production of special chemicals like lithium battery electrolytes.

Precautions and Maintenance

Precautions:

1. Do not apply localized ultra-high temperature heating to the coated surface without medium, to prevent coating degradation.

2. Avoid scratching the coating surface with sharp, hard objects to maintain its integrity.

3. Before initial use, it is recommended to clean the inner wall with a neutral cleaning agent.

Maintenance Recommendations:

1. Regular Inspection: Perform spark (pinhole) testing regularly (e.g., semi-annually) to check for microscopic pinholes.

2. Professional Cleaning: Use an appropriate cleaning solution based on the media. The non-stick property of PFA makes cleaning very easy.

3. Seal Inspection: Regularly check the sealing at manways and nozzles to ensure no leakage.

Why Choose Zhuoyan?

1. Strong Technical Capabilities: As a "Specialized, Refined, and Innovative" enterprise in Shandong Province, it possesses 40 patented technologies and has successfully developed Shandong's first large-diameter reactor lined with PFA, demonstrating industry-leading technical capabilities.

2. Refined Craftsmanship: Equipped with internationally advanced equipment such as the Swiss Gema electrostatic powder coating machine, and employing a unique ±3℃ furnace temperature difference control technology, it ensures the uniformity of coating and consistent performance of each batch of products.

3. Comprehensive Quality Assurance System: From raw material inspection to finished product delivery, strict adherence to testing procedures (including electrical discharge machining) ensures zero defects in products.

4. Professional Team and Customized Services: With an experienced R&D and engineering team, it can provide customized solutions throughout the entire process, from design and material selection to manufacturing, based on the customer's specific operating conditions (such as media, temperature, and pressure).

FAQ

Q1: What is the highest temperature and pressure your PFA coating can withstand?

A1: Continuous operating temperature up to 260°C, capable of withstanding full vacuum conditions at this temperature.

Q2: What is the coating thickness? Is it uniform?

A2: Standard thickness is typically between 0.8-1.0mm. We ensure uniform coating thickness through precise process control, avoiding areas that are too thin or too thick.

Q3: How do you guarantee the coating is free of pinhole defects?

A3: We conduct rigorous electrical discharge (spark) testing multiple times during production. This is the industry's most effective method for detecting pinhole defects, ensuring a dense and integral coating.
