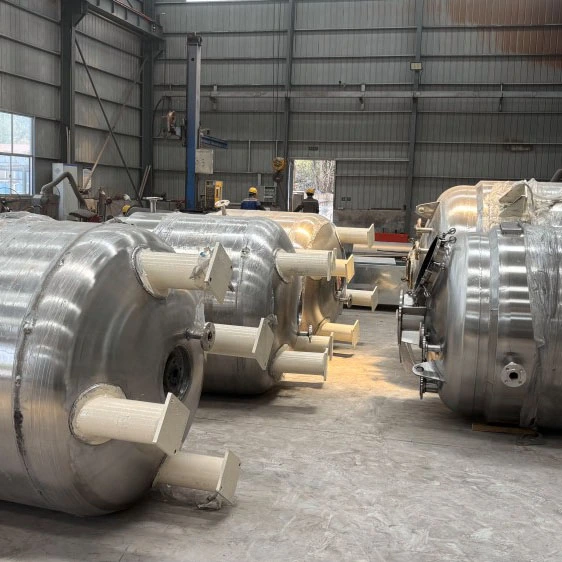

PFA Coated Industrial Reaction Mixing Vessel

Zhuoyan PFA Coated Industrial Reaction Mixing Vessel is a reaction equipment with a PFA anti-corrosion layer applied to the inner surface of a stainless steel or carbon steel substrate through a high-temperature sintering process. PFA offers excellent chemical inertness and thermal stability. The coating bonds firmly with the metal substrate, effectively isolating the metal from corrosive media and extending service life.

This product is suitable for corrosive media reaction and mixing processes in fine chemical synthesis, pharmaceutical intermediate production, new energy material preparation, and pigment/dye processing.

Key Advantages

1.Corrosion Resistance : PFA coating resists most strong acids (hydrochloric acid, sulfuric acid, nitric acid, etc.), strong alkalis, and organic solvents, suitable for various corrosive reaction media.

2.Temperature Resistance : The PFA coating operates stably from -80°C to +260°C and withstands thermal shock conditions.

3.Coating Adhesion : The spray application process ensures firm bonding between PFA and the vessel wall, preventing detachment or cracking, and capable of withstanding certain vacuum conditions.

4.Non-stick and Purity : Low friction coefficient of PFA facilitates material flow and discharge while reducing metal ion leaching—suitable for processes requiring high purity.

5.Customization : Vessels of various sizes and coating thicknesses can be customized to meet specific process requirements.

Technical Specifications

Coating Process

Zhuoyan PFA coating application process:

Material Inspection → Grinding → High-Temperature Degreasing → Sandblasting → Surface Cleaning → Preheating → Primer Application → Primer Drying → Topcoat Application (1st coat) → High-Temperature Sintering → Topcoat Repeated Application and Sintering (7 coats total) → Appearance Inspection → Coating Thickness Inspection → Electrical Discharge Testing → Adhesion Testing → Inner Surface Cleaning → Packaging

Application Fields

·Fine Chemicals : Dye, pigment, pesticide intermediate synthesis

·Pharmaceutical Intermediates : Production under chlorine/fluorine-containing and strong acid conditions

·New Energy Materials : Lithium battery electrolytes, photovoltaic material precursors

·Petrochemical : Acidic media processing, exhaust gas treatment

·Others : Storage, mixing, and reaction of corrosive liquids

Quality Control

Zhuoyan performs the following inspections on each PFA Coated Industrial Reaction Mixing Vessel:

·Appearance Inspection : Visual check for coating smoothness, bubbles, or impurities

·Thickness Measurement : Verify coating thickness meets specifications

·Electrical Discharge Testing : Detect pinhole defects in the coating

·Adhesion Testing : Ensure coating-to-substrate bond strength meets requirements

After-Sales Service

· Installation guidance and operating instructions provided

· Warranty coverage for non-human-caused coating quality issues

· The technical support team can remotely assist in resolving technical issues encountered during use.

FAQ

Q1: Which media can PFA coating withstand?

A1: PFA resists most acids, alkalis, and organic solvents, including hydrochloric acid, sulfuric acid, nitric acid, and hydrofluoric acid. Consult Zhuoyan's technical team for specific media compatibility.

Q2: Can damaged coating be repaired?

A2: Local patch repair is possible. Regular coating integrity inspection is recommended to address issues promptly and extend service life.

Q3: What is the delivery lead time?

A3: Standard specifications: 30-45 working days, subject to size and order quantity.

Q4: What precautions should be taken during operation?

A4: Avoid over-temperature and over-pressure operation. Inspect the coating surface after each use. Clean and dry the interior before long-term shutdown. Perform electrical discharge testing periodically to verify coating integrity.
