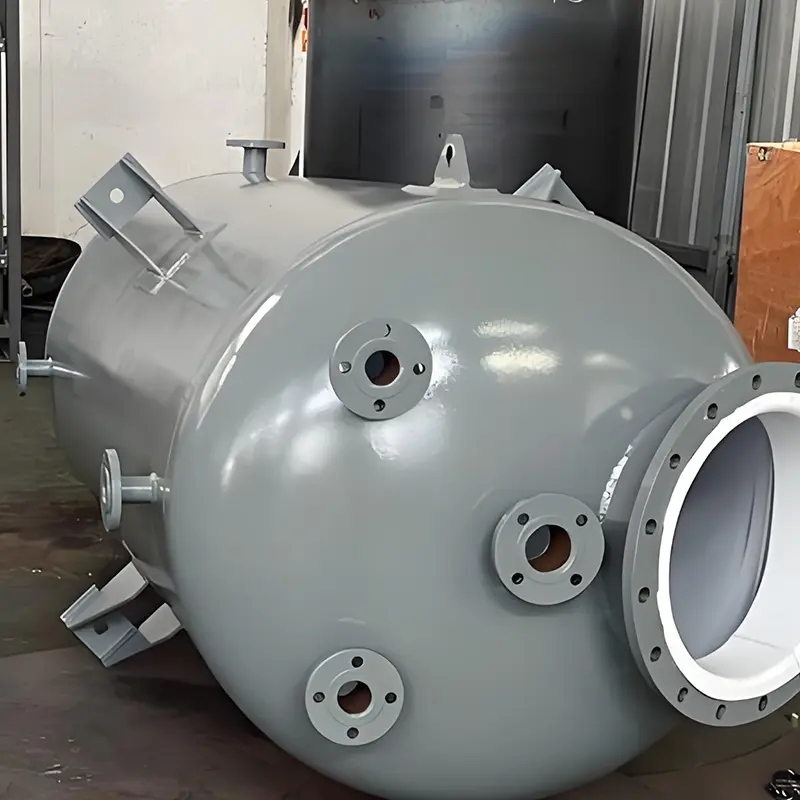

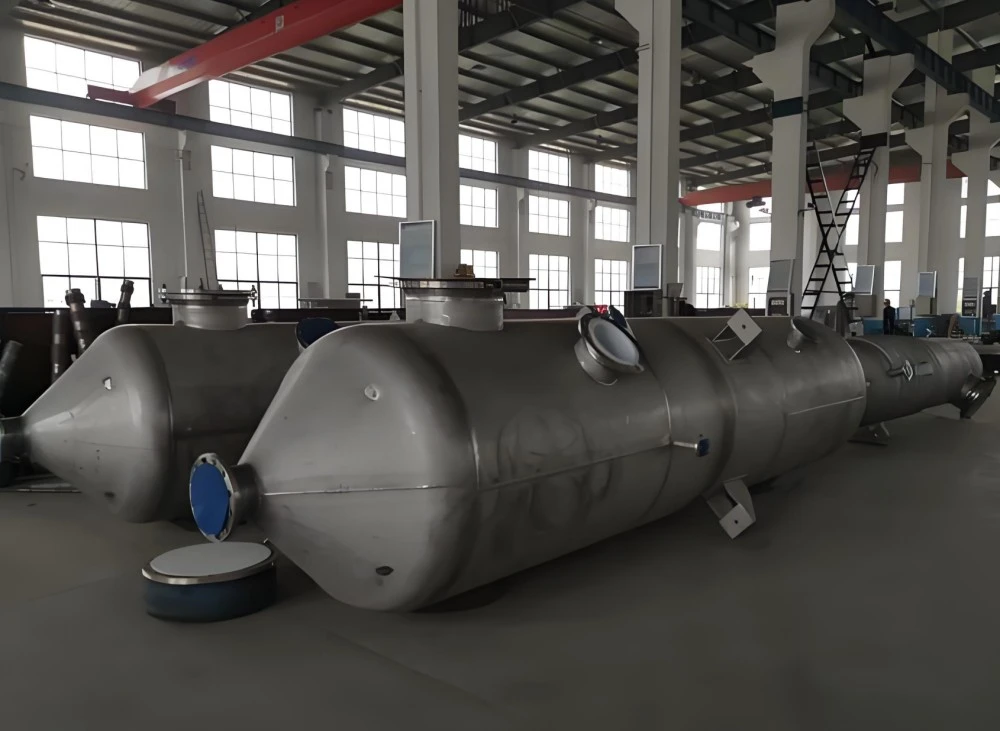

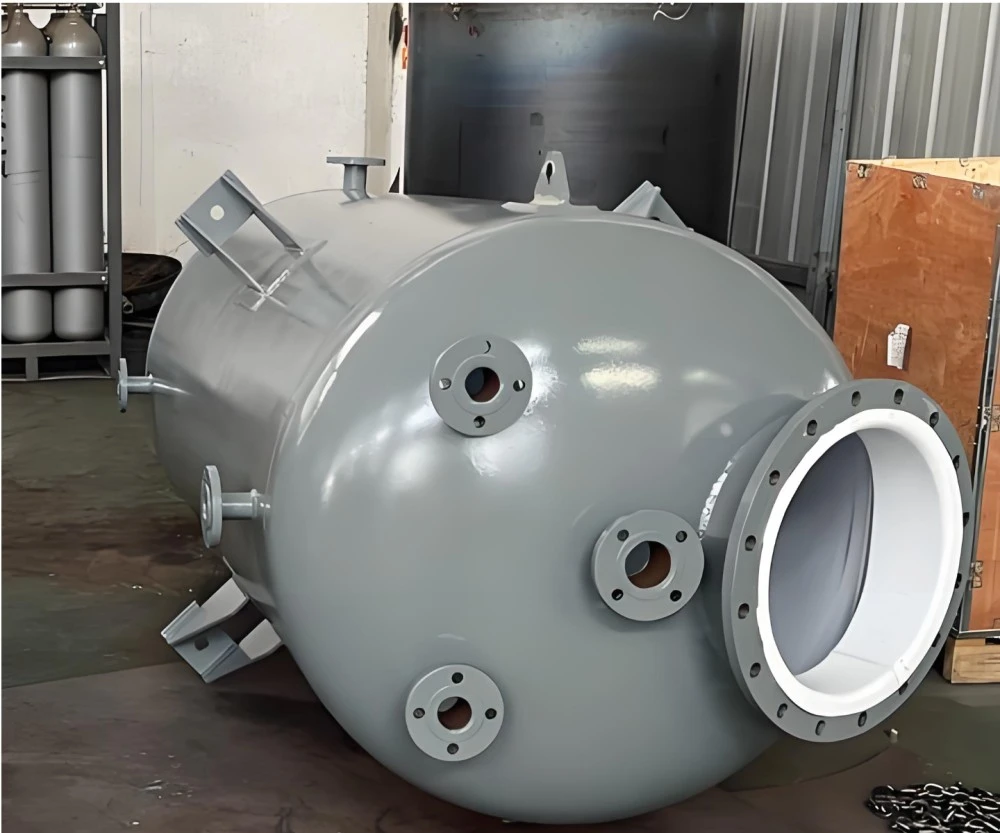

Zhuoyan factory's PTFE Lined Reactor for Pharmaceutical Industry is special clean-grade pressure vessel with ultra-smooth seamless PTFE lining, exclusively used for API, medical intermediate and biologic reagent synthesis. Different from general chemical reactors resistant to complex solvents, this product focuses on ultra-low metal ion precipitation and no medium residue, fully meeting pharmaceutical GMP hygiene requirements. Inner lining adopts 3mm thin uniform imported fluorine sheet without dead angles, easy full cleaning and sterilization. Standard volume range 50L–3000L, working temperature -180℃~180℃, suitable low/medium pressure clean reaction environment.
Dedicated to high-purity pharmaceutical production: small-batch API synthesis, medical intermediate purification, biologic reagent blending, low-temperature pharmaceutical crystallization. Products exported to Southeast Asian pharmaceutical factories and domestic biotech enterprises, mainly for clean room supporting equipment orders.
| Comparison Item | Pharmaceutical PTFE Lined Reactor | Glass Lined Tank | PFA Sprayed Vessel | Small Factory Vessel |
| Purity Control | Ultra-low ion precipitation, GMP compliant | Easy glass fragment shedding | Thin coating easy scratch pollution | Impure raw material pollutes medicine |
| Volume Range | 50L–3000 clean small-medium tank | Lab mini size only | Limited small capacity | Unqualified cleanliness standard |
| Cleaning Performance | No dead angle inner surface easy sterilization | Hard to clean residual drug residue | Coating scratch risk during cleaning | Serious medium residue |
| Service Life | 8–12 years | 3–5 years | 4–6 years | 1–3 years |
1. Import low-precipitation PTFE raw material to guarantee drug purity
2. Full dead-angle-free lining design for clean room sterilization
3. Sanitary flange & matched lined agitator supporting GMP workshop
4. Professional technical team optimizes layout drawing for pharmaceutical clean area
5. Independent clean production area to avoid cross-contamination during processin
1. Precision polishing of all inner welds to eliminate dead corners
2. Clean workshop sodium activation & dust-free vacuum lining
3. Double inspection: cleanliness test + 10KV spark leakage detection
4. Independent dust-free plastic packaging for clean room delivery
1. Remote video guidance for clean room equipment installation
2. Annual clean lining maintenance reminder for pharmaceutical production lines
3. Supply sanitary type replacement stirring parts long-term
4. Warranty: steel shell 10 years, PTFE lining 5 years, stirring parts 2 years
A: Yes, all inner lining processes comply with pharmaceutical hygiene requirements, we can provide relevant inspection reports.
A: The temperature range -180℃~180℃ fully supports low-temperature drug crystallization reaction.
A: We supply full set GMP compliant PTFE lined stirring components.
A: Our technical team optimizes inlet/outlet positions based on your clean workshop drawing.
A: Small test vessel samples can be provided for drug medium verification.
