Our product range includes PTFE sheet-lined equipment, PTFE spraying and roller coating, plastic-lined equipment, PTFE-lined steel pipes and fittings, and related fluoropolymer components made from PTFE, PFA, ETFE, FEP and other advanced materials.
Different from small vertical laboratory reaction kettles, this PTFE Lined Chemical Reaction Tank is designed targeting bulk industrial continuous production scenarios. It innovatively adds horizontal saddle-type structural options, greatly lowering the overall installation height of equipment and eliminating the need for factory civil reconstruction. The integral fluorine lining avoids splicing gaps that easily cause medium seepage during long-cycle alternating acid-base reactions. It features wide-mouth manhole design for convenient bulk raw material feeding, and has been widely delivered to medium and large chemical industrial parks in the Middle East and Southeast Asia for raw material pre-blending and waste liquid centralized treatment projects.
| Parameter Item | Standard Technical Data |
| Product Name | PTFE Lined Chemical Reaction Tank |
| Optional Structure | Vertical Ground / Horizontal Saddle Type |
| Available Volume | 1000L / 5000L / 10000L / 30000L / 50000L |
| Outer Shell Material | Q345R Pressure Vessel Carbon Steel |
| Custom Lining Thickness | 3mm (General Media) / 4–5mm (Acid-Alkali Alternating) |
| Working Temp Range | -180℃ ~ 260℃ |
| Design Pressure | 0 ~ 1.0MPa |
| Core Matching Parts | Wide-mouth manhole, feeding & discharging nozzles |
| Factory Inspection | 10KV Spark Test + Hydraulic Pressure Holding Test |

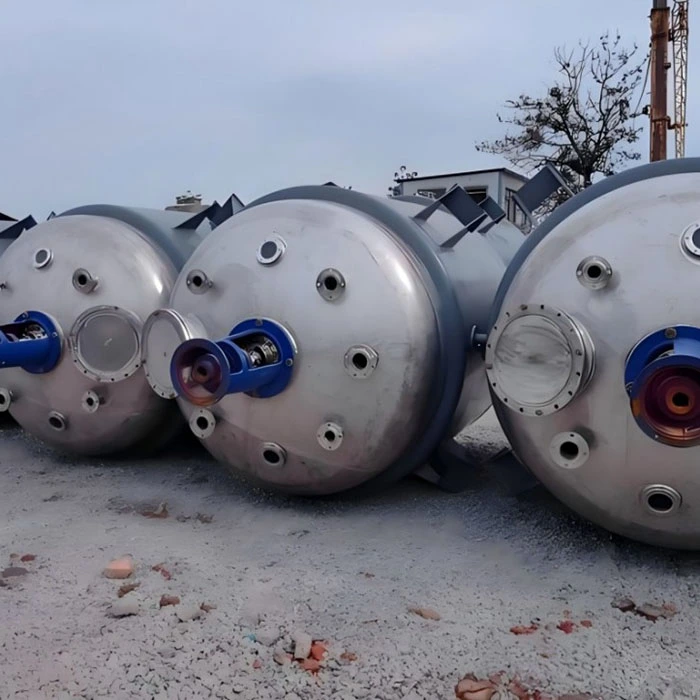

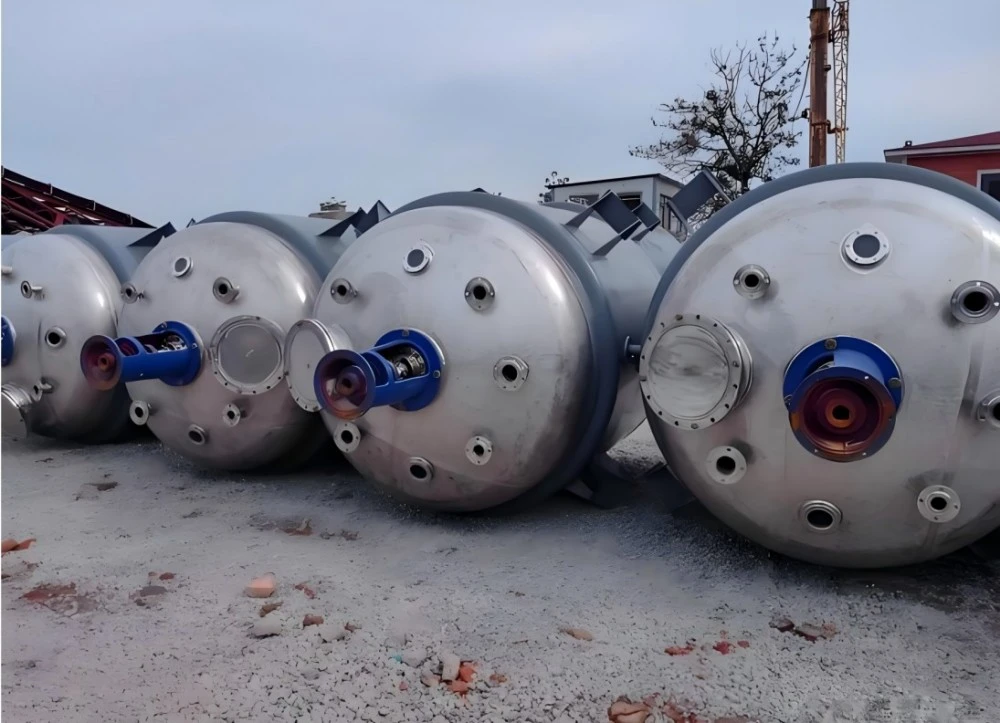

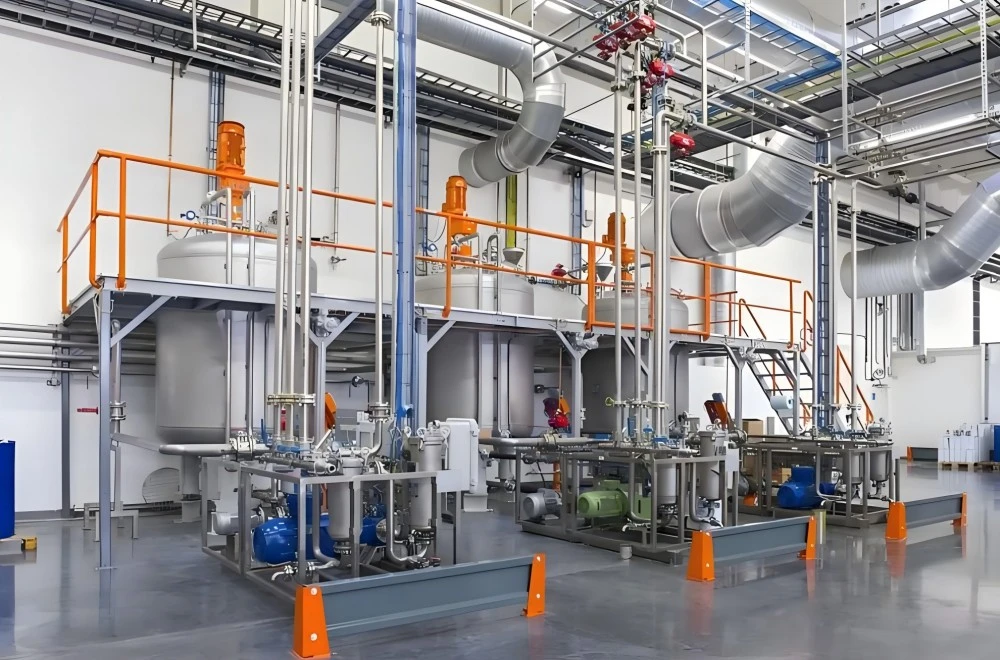

PTFE Lined Chemical Reaction Tank is a large-volume fluorine-lined pressure vessel with Q345R carbon steel as the outer bearing shell and seamless sodium-activated PTFE as the inner anti-corrosion barrier. It has two optional installation forms: vertical ground type and horizontal saddle type. Its core positioning is pre-reaction and mixing of high-flow industrial chemical raw materials, not small-batch fine synthesis. The 3–5mm adjustable thick lining can adapt frequent switching of acidic and alkaline media, working temperature -180℃ ~ 260℃, design pressure 0–1.0MPa, and is suitable for long-cycle uninterrupted industrial production.
1. Dual-structure free matching, horizontal model adapts low-rise plant without high civil engineering cost
2. Oversized one-piece vacuum lining technology, no splicing welding gaps, effectively prevent medium penetration
3. Wide-caliber manhole reserved, convenient for large tonnage solid and liquid raw material feeding
4. Customized saddle support frame for horizontal tanks, stable bearing during long-term static operation
5. Large-volume integrated preferential quotation for chemical park centralized purchasing orders
6. Complete supporting lined elbows, tees and valves for one-stop full production line matching
1. Bulk fine chemical raw material premixing and compounding
2. New energy lithium raw material pre-blending production lines
3. Industrial mixed acid centralized preparation workshops
4. Chemical park corrosive waste liquid neutralization treatment stations
5. Medium inorganic salt continuous synthesis production projects
6. Petrochemical auxiliary agent pre-reaction working conditions
1. Integral welding of large tank body, full grinding of all weld seams to remove burrs and gaps
2. 500℃ high-temperature degreasing to eliminate internal welding residual stress
3. Sa2.5 grade heavy sandblasting to enhance PTFE sheet adhesion strength
4. Oversized vacuum equipment for seamless one-piece PTFE lamination, V-type double welding at manhole joints
5. Full inner wall 10KV spark scanning inspection to find tiny lining defects
6. 1.2 times design pressure hydraulic holding test for tightness verification
7. Reinforced steel frame fixed packaging to avoid deformation in long-distance sea transportation
Q1: Can the horizontal reaction tank be installed in low-height factory buildings?
A: Yes, the horizontal structure effectively reduces the overall height of the equipment, no high platform transformation required.
Q2: What is the maximum customizable single tank volume?
A: We support integral production of 50000L large horizontal lined reaction tank
Q3: Is the lining stable under long-term alternating acid and alkali reaction cycles?
A: Thickened integral PTFE lining can withstand repeated switching of acidic and alkaline media without peeling.
Q4: Will special transportation brackets be equipped for super-large tanks?
A: We provide customized reinforced steel transport frames free of charge for large-volume equipment.
Q5: Can a complete set of lined pipeline accessories be matched at the same time?
A: Full series anti-corrosion pipe fittings are available for one-stop supporting procurement.
Q6: What is the warranty period of the tank lining?
A: PTFE lining enjoys 5-year global warranty, carbon steel shell 10 years, supporting accessories 2 years
