Our product range includes PTFE sheet-lined equipment, PTFE spraying and roller coating, plastic-lined equipment, PTFE-lined steel pipes and fittings, and related fluoropolymer components made from PTFE, PFA, ETFE, FEP and other advanced materials.

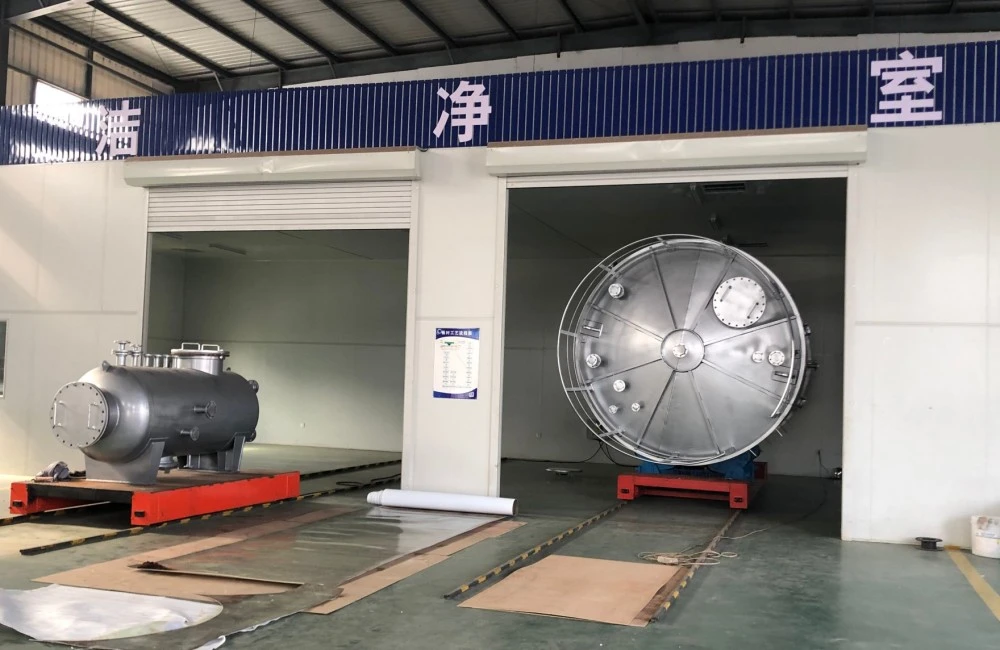

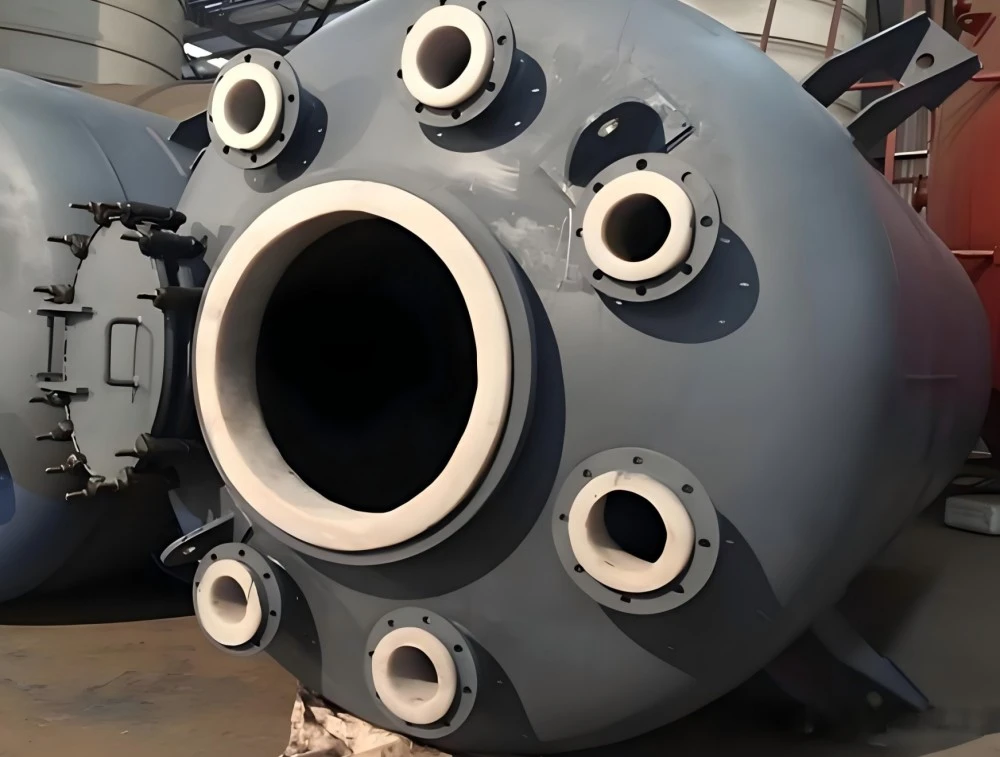

PTFE Lined Chemical Reactor is heavy-duty carbon steel pressure vessel with seamless integral PTFE lining, specially designed for continuous mass chemical synthesis, inorganic salt compounding and waste acid neutralization. Different from pharmaceutical dedicated reactors that focus on high purity, this model prioritizes long-cycle 24h uninterrupted industrial operation and strong tolerance for complex mixed corrosive media. The 4–5mm thick fluorine lining effectively avoids bubbling or peeling under long-term mixed solvent erosion. Available specifications cover lab 50L up to 50000L industrial grade, working temperature -180℃~260℃, design pressure 0–1.6MPa.
Mainly applied to bulk chemical production lines: fluorochemical raw material synthesis, herbicide intermediate reaction, industrial waste acid recycling, inorganic salt manufacturing, petrochemical additive preparation. Our chemical reactors have long-term delivery records to medium and large chemical factories in Vietnam, Thailand and Malaysia, focusing on large-volume whole plant equipment bidding orders.
| Comparison Item | Zhuoyan PTFE Lined Chemical Reactor | Glass Lined Vessel | PFA Sprayed Tank | Small Factory Reactor |
| Medium Adaptability | Resist mixed acid & multi organic solvents | Cannot contact hydrofluoric acid | Only fit mild single solvent | Impure lining easy blister |
| Production Scale | 50L–50000L full range | Only small lab volume | Max 3000L limit | Below 2000L only |
| Continuous Operation | 24h stable circulation | Easy crack under long run | Rapid coating abrasion | Frequent maintenance |
| Service Life | 10–15 years | 3–5 years | 4–6 years | 1–3 years |
1. Thickened PTFE lining customized for complex mixed corrosive media
2. Multiple heating options matching factory central steam heating system
3. Standardized large-volume production to cut single-unit procurement cost
4. Full set lined pipe, valve and agitator for one-stop whole-line matching
5. Free medium corrosion test report support for new factory project design
1.Heavy sandblasting to Sa2.5 grade for long-term lining adhesion
2.Sodium activation + vacuum seamless PTFE pasting, full welding at tank bottom & manhole
3.Triple inspection: visual appearance → 10KV spark leak test → 1.6x design hydraulic pressure test

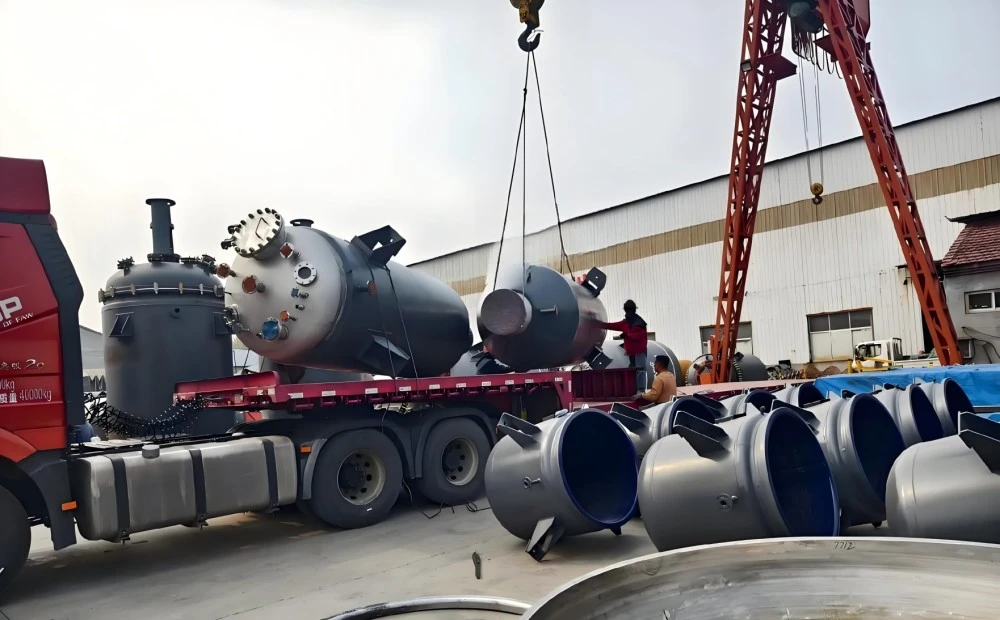

4.Dustproof industrial packaging for long-distance sea transportation
1. Overseas on-site engineer service for super-large chemical plant projects
2. Quarterly production line operation tracking & lining anti-aging maintenance guide
3. Long-term supply of original lined agitator and flange spare parts at factory cost
4. Warranty terms: steel shell 10 years, PTFE lining 5 years, stirring accessories 2 years
A: Yes, thickened PTFE lining can bear long-term contact of fluorine-containing mixed media.
A: Stable 24-hour cyclic operation without lining shedding risk.
A: We adjust jacket size and interface per your heating system parameters.
A: Exclusive integrated quotation discount for complete production line procurement.
A: Free medium analysis and test data support for chemical enterprise customers.
