PTFE Lined Industrial Chemical Pipeline

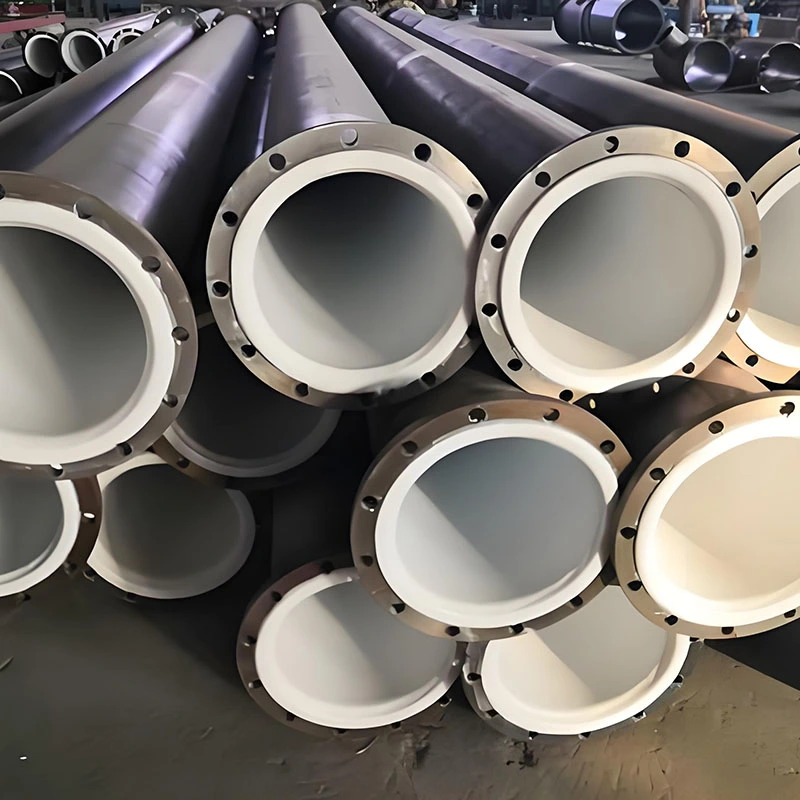

Zhuoyan PTFE lined industrial chemical pipeline is a composite piping system designed for the safe and efficient transport of highly corrosive chemical media. The piping consists of a carbon steel outer shell providing structural strength and pressure resistance, and a PTFE inner lining providing corrosion resistance.

With over ten years of experience in industrial corrosion-resistant linings, Zhuoyan has developed advanced manufacturing processes to ensure the integrity and service life of its PTFE-lined pipes. This product is designed to meet the requirements of industries such as fine chemicals, petrochemicals, pharmaceuticals, pesticides, semiconductors, and environmental protection. The product is available in various nominal diameters and lengths and can be customized to specific operating conditions and installation requirements.

What is PTFE Lined Pipeline?

PTFE-lined pipes are corrosion-resistant pipes with an inner surface covered by a layer of polytetrafluoroethylene (PTFE). PTFE, often called the "king of plastics," is a high-performance fluoropolymer renowned for its excellent chemical inertness, wide operating temperature range, and non-stick properties.

The inner lining acts as a barrier between the transported medium and the metal pipe wall, preventing chemicals from corroding the steel substrate. This design is particularly important when handling highly corrosive media, such as concentrated acids (sulfuric acid, hydrochloric acid, nitric acid, aqua regia), strong alkalis, halogens (chlorine, fluorine, bromine, iodine), and many organic solvents. The PTFE lining protects the metal pipe from corrosion, thereby extending the service life of the piping system, reducing maintenance costs, and ensuring the safety and purity of process fluids. Zhuoyan's PTFE-lined pipes are manufactured using high-quality PTFE resin and advanced lining technology, providing reliable performance even in environments requiring corrosion resistance.

Key Features and Advantages

1. Superior Chemical Resistance: PTFE linings exhibit excellent resistance to a wide range of corrosive substances, including strong acids, strong alkalis, organic solvents, halogens, and oxidizers. This ensures reliable operation even when handling highly corrosive chemicals, minimizing the risk of pipeline failure due to corrosion.

2. Wide Operating Temperature Range: Zhuoyan PTFE lined industrial chemical pipelines can operate reliably over a wide temperature range. This broad range of thermal stability makes the pipes suitable for operating conditions involving extreme temperature fluctuations.

3. High impermeability: The dense, highly crystalline PTFE lining exhibits excellent impermeability to gases and liquids such as chlorine, oxygen, water vapor, and hydrochloric acid. This impermeability is crucial to prevent corrosive media from penetrating the lining and corroding the steel substrate.

4. Low Friction and Non-Stick Surface: PTFE has one of the lowest coefficients of friction among solid materials. Its non-stick, self-cleaning surface prevents the accumulation of deposits, reduces flow resistance, and minimizes the risk of clogging . This property is especially beneficial for processes where product purity is essential or when handling media that tend to polymerize or deposit.

Working Principle and Production Process

The working principle of the PTFE lined pipeline relies on the synergistic combination of the mechanical properties of the steel shell and the chemical resistance of the PTFE lining. The steel pipe provides the structural integrity to contain pressure and mechanical loads, while the PTFE lining acts as a chemically inert barrier that prevents contact between the corrosive fluid and the metal substrate.

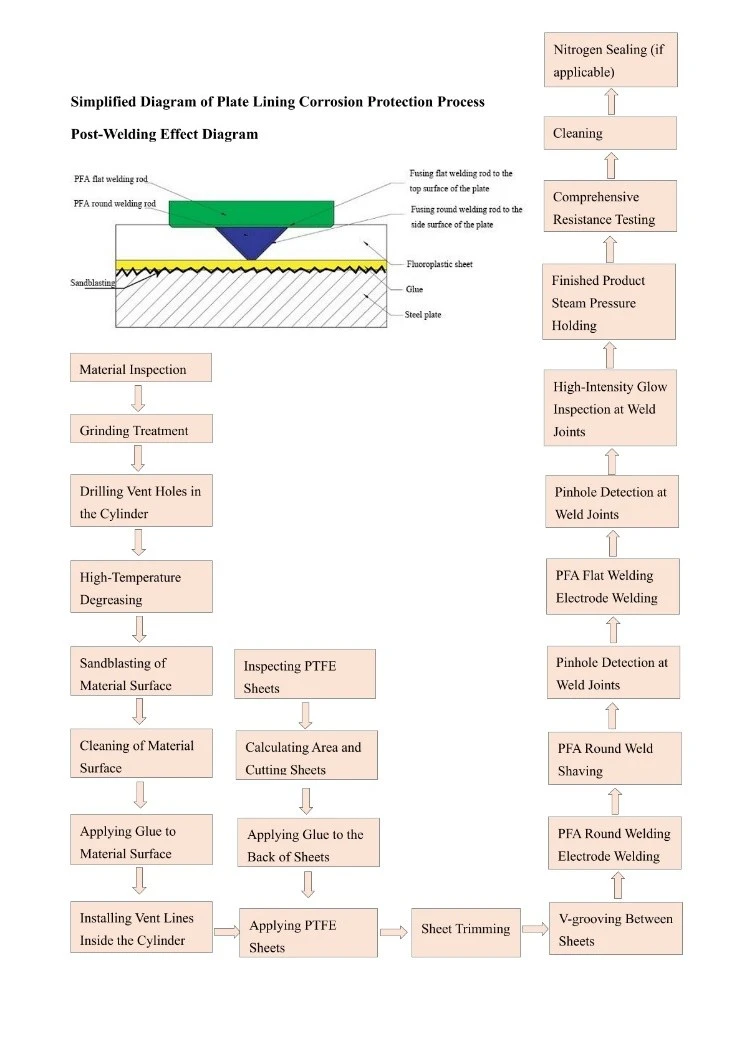

The manufacturing of a high-quality PTFE lined pipe involves a series of precise and controlled steps to ensure the integrity and performance of the final product. This process includes:

1. Material Inspection: Raw materials, including steel pipes and PTFE resin, are inspected for quality and compliance.

2. Surface Preparation: The inner surface of the steel pipe is prepared by processes such as grinding, high-temperature degreasing, and sandblasting to achieve a clean, roughened surface that promotes adhesion .

3. Primer/Adhesive Application: A specialized primer or adhesive is applied to the prepared steel surface to enhance the bond strength between the steel and the PTFE lining .

4. Lining Installation: The PTFE liner is inserted into the steel pipe. This can be achieved through various methods, such as pulling a slightly oversized liner through a reduction die and allowing it to expand against the steel wall, or by using a swaging process where the steel pipe is mechanically reduced around the liner . For larger diameter pipes, a sheet lining process involves applying adhesive to both the steel surface and the PTFE sheets, then carefully bonding them together with specialized techniques.

5. Sintering/Fusion: The assembled pipe is heated in a controlled-temperature oven to a specific temperature profile to fuse the PTFE, cure the adhesive, and relieve any residual stresses in the lining. This step also ensures the PTFE conforms tightly to the steel wall.

Quality Control and Testing:

The finished pipes undergo rigorous testing, including visual inspection, thickness measurement, electrical spark testing for pinhole detection, and adhesion testing to ensure the quality and integrity of the liner .

Specifications and Models

Zhuoyan offers PTFE lined pipes in a variety of standard sizes and configurations. The following are typical specifications. Custom sizes are available upon request.

Application Areas

Zhuoyan PTFE lined pipelines are extensively used in industries where corrosion resistance, purity, and reliability are paramount. Typical applications include:

Fine Chemical Industry: Transport of corrosive intermediates, acids, and solvents.

Petrochemical Industry: Handling of aggressive media in refining and petrochemical processes .

Pharmaceutical Industry: Transfer of high-purity chemicals and active pharmaceutical ingredients (APIs) where product purity is critical.

Pesticide Industry: Conveyance of corrosive raw materials and finished products.

Semiconductor Industry: Transport of high-purity, corrosive process chemicals and waste streams.

Environmental Protection: Handling of corrosive waste acids, alkalis, and industrial wastewater.

Chlor-Alkali Industry: Transportation of chlorine, caustic soda, and other highly corrosive media.

Power Industry: Flue gas desulfurization (FGD) systems and handling of corrosive chemicals in power plants.

Usage Precautions

To ensure optimal performance and a long service life of Zhuoyan PTFE lined pipelines, the following precautions should be observed:

1. Temperature Limits: Avoid operating the pipeline continuously at or above the maximum temperature rating of the PTFE lining (e.g., beyond 160°C for standard grade), as this can lead to softening, deformation, and reduced service life .

2. Pressure Management: Ensure operating pressures do not exceed the specified rating. Rapid pressure surges should be avoided to prevent mechanical stress on the lining and flanges.

3. Chemical Compatibility: While PTFE is resistant to most chemicals, it is susceptible to attack by molten alkali metals and elemental fluorine at high temperatures. Confirm chemical compatibility with Zhuoyan for unusual or extreme media .

4. Installation: Flanges should be tightened evenly and to the correct torque to avoid over-stressing the flanges and causing leakage. Pipes should be supported properly to prevent sagging or vibration.

5. Handling: PTFE has a relatively low creep resistance; avoid localized point loads or sharp impacts that could permanently deform the lining.

6. Inspection: Regularly inspect the pipeline, especially flange connections and areas exposed to high temperature or pressure cycles, for signs of leakage or flange gasket degradation.

7. Pre-commissioning: Ensure the pipeline system is clean and free of debris before start-up to prevent damage to the PTFE lining.

FAQ

Q1: What is the maximum operating temperature for Zhuoyan PTFE lined pipes?
A1: The standard PTFE lined pipe can operate continuously up to approximately 160°C . For applications requiring higher temperatures, Zhuoyan offers engineered solutions and can recommend alternative materials like PFA.

Q2: How does the PTFE lining resist permeation?
A2: Zhuoyan uses high-density PTFE and a precise lining process to form a dense, thick liner. This structure provides a high barrier to gas and liquid permeation, protecting the steel shell from corrosive attack .

Q3: What lengths and diameters are available?
A3: Standard nominal diameters range from DN25 to DN600 (1" to 24"), with lengths up to 6000 mm depending on the diameter . Custom sizes and lengths can be manufactured to meet specific project requirements.

Q4: How can I get a customized quote for my specific application?
A4: Please contact Zhuoyan directly with your process conditions, such as media composition, temperature, pressure, and desired pipe dimensions. Our technical team will provide a tailored solution and a quotation based on your specific needs.
