PTFE Lined Acid Resistant Chemical Storage Tank is a dedicated storage container designed exclusively for long-term storage of single and mixed inorganic acid raw materials. Different from general multi-medium storage vessels and ultra-high anti-fluoride storage tanks, this model optimizes lining thickness and inner structure aiming at acidic liquid’s slow permeation corrosion characteristics, greatly lowering acid liquid penetration risk during long static stockpiling. The tank body adopts thick Q345R carbon steel as outer bearing shell, matched with acid-resistant integral PTFE inner barrier, avoiding direct contact between acid and metal shell to prevent rust and perforation. Widely applied to inorganic chemical, metal pickling, waste acid recovery and pesticide raw material factories around Southeast Asia and Central Asia, with standardized stock models for fast delivery.

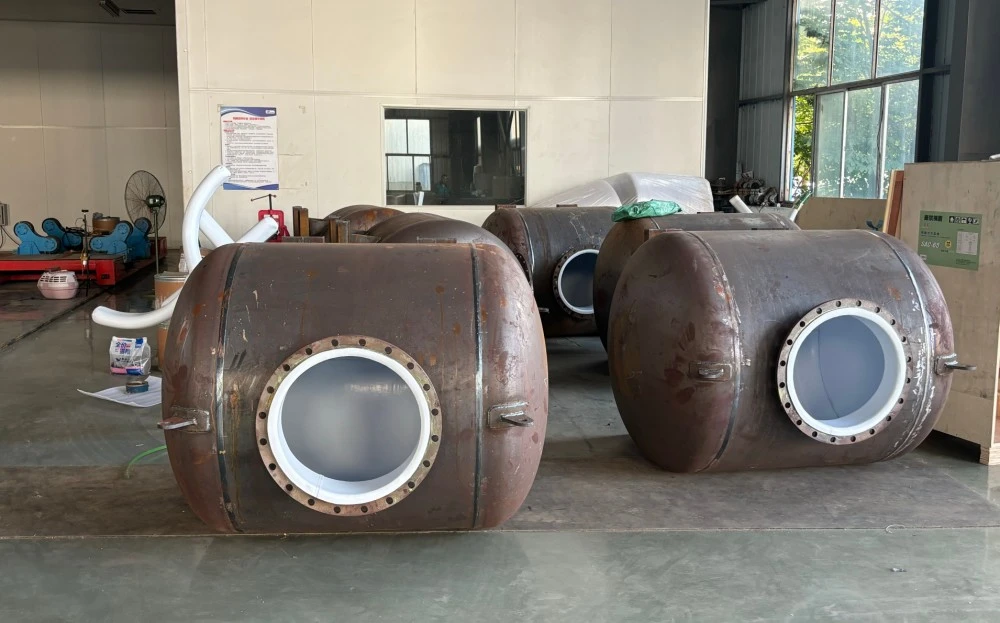

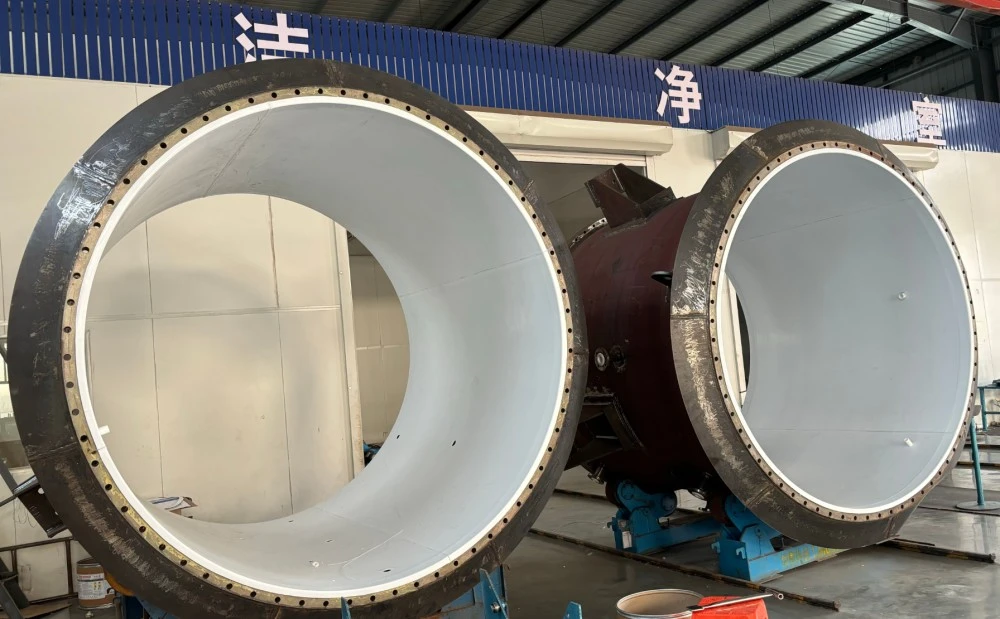

PTFE Lined Acid Resistant Chemical Storage Tank is a pressure-free static storage vessel composed of carbon steel outer shell and acid-resistant seamless PTFE inner liner. The core design goal is to solve long-term storage corrosion problems of various inorganic acidic media. All tank inner walls, manholes, liquid inlet and outlet nozzles are fully covered by integral PTFE lining without exposed metal areas, eliminating tiny gaps where acid liquid may accumulate and erode the steel body. Available in vertical ground placement and horizontal saddle support two structural forms, volume covers small lab buffer 100L to industrial large storage 60000L, only suitable for atmospheric acidic liquid storage, not recommended for long-term high-concentration hydrofluoric acid continuous storage.
| Parameter Item | Standard Technical Parameters |
| Full Product Name | PTFE Lined Acid Resistant Chemical Storage Tank |
| Optional Structure | Vertical Ground Type / Horizontal Saddle Type |
| Optional Volume Range | 100L / 500L / 2000L / 10000L / 30000L / 60000L |
| Outer Shell Material | Q345R Carbon Steel Plate |
| Standard Lining Thickness | 3mm (ordinary acid) / 4mm (mixed concentrated acid) |
| Applicable Medium | Hydrochloric acid, sulfuric acid, nitric acid, mixed inorganic acid |
| Working Temperature Range | -160℃ ~ 190℃ |
| Working Pressure | Atmospheric pressure only, vacuum operation not supported |
| Standard Matching Nozzles | Liquid inlet, liquid outlet, liquid level gauge port, maintenance manhole |
| Flange Standard | HG20536 full acid-resistant PTFE lined flange |
| Factory Inspection Standard | 10KV full wall spark test + hydraulic holding test |
· Targeted Thickened Acid-Resistant PTFE Lining 3-4mm adjustable integral fluorine sheet, slow down acid liquid micro-permeation, effectively extend service life under long-term static acid storage.

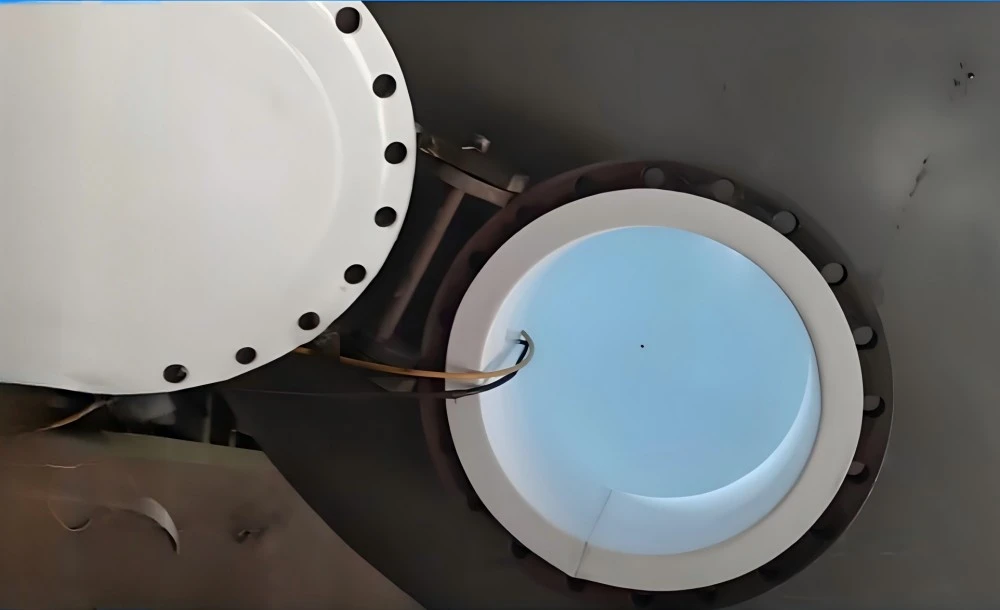

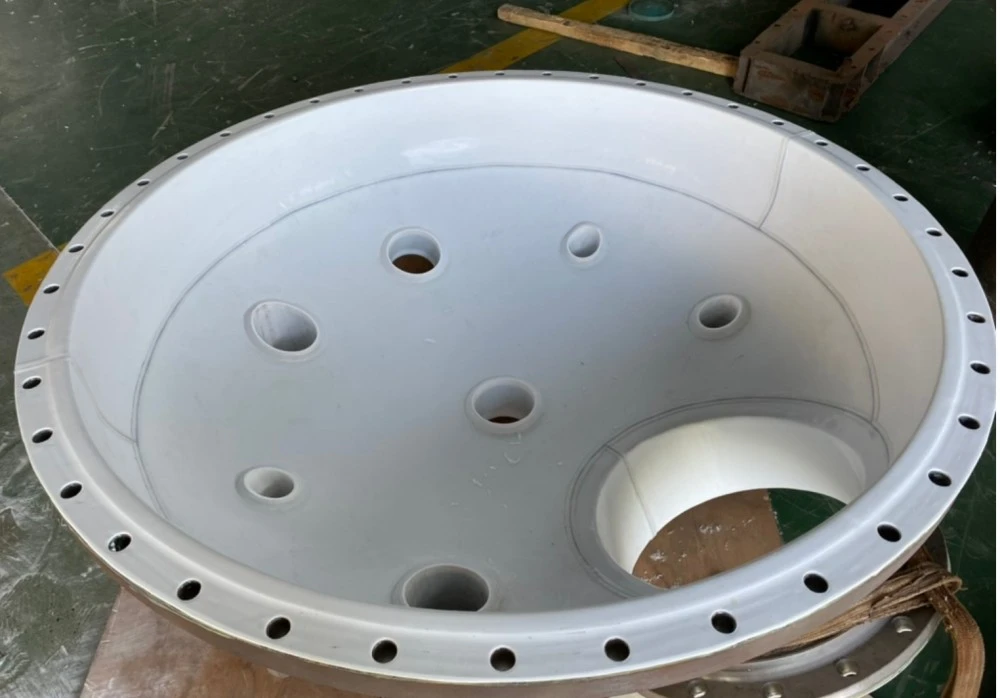

· Zero Dead-Angle Full Lining Structure Manhole, nozzle and tank bottom are all seamlessly wrapped by PTFE, no acid liquid residue crevices to avoid local concentrated corrosion.

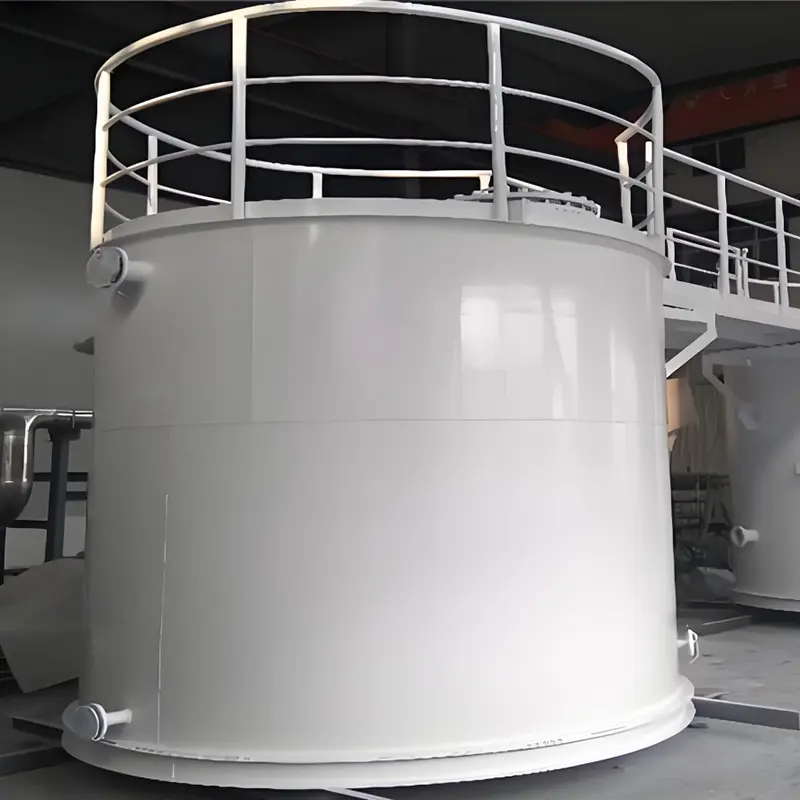

· Dual Layout Optional Design Vertical tank saves factory floor space; horizontal tank adapts low-height workshop buildings, free selection according to plant layout.
· Standard Stock Short Delivery Cycle Common acid storage specifications are stocked in warehouse, cutting waiting period for factory acid liquid storage expansion projects.
· Low Maintenance Acid Specialized Structure Smooth non-stick inner lining, acid residue easy to rinse, reduce regular tank cleaning labor cost.
· Complete Supporting Acid-Resistant Pipe Fittings Matched lined elbow, tee, valve for acid conveying pipeline, realize full closed acid storage system one-stop purchase.
· Medium Limitation: This tank fits inorganic acid only, long-term storage of hydrofluoric acid, fluorine mixed acid is prohibited; if HF medium is needed, choose our special fluorine-resistant storage vessel separately.
· Pressure Restriction: Strictly forbid negative pressure pumping operation, the tank is designed for atmospheric storage only, vacuum will cause lining peeling.
· Temperature Control: Continuous storage temperature shall not exceed 190℃, avoid frequent sharp hot and cold alternation every hour.
· Liquid Level Limit: Acid filling height shall not exceed 85% of total tank volume, reserve expansion space for temperature rise.
· Foreign Object Ban: Hard metal tools, iron blocks are not allowed to be put into the tank, scratch will destroy acid-resistant lining layer.
· Medium Separation: Do not store alkaline liquid in the same tank after storing acid without thorough cleaning, acid-base neutralization heat will damage lining.
1. Wrong Operation: Store acid and alkali alternately without full cleaning
Correct Method: After emptying acid liquid, use neutral water repeated washing, fully dry inner wall before storing alkaline medium; separate dedicated tanks for acid and alkali storage is recommended.
2. Wrong Operation: Use iron brush to scrub tank inner residue
Correct Method: Adopt soft plastic brush and neutral cleaning fluid to rinse, hard metal brush will scratch PTFE acid-resistant lining.
3. Wrong Operation: Pump negative pressure to draw out residual acid liquid
Correct Method: Adopt gravity natural discharging or low-pressure air supplementary discharging, never form vacuum inside the tank.
4. Wrong Operation: Fill acid liquid to full tank top without reserved space
Correct Method Keep liquid level below 85% volume to prevent acid overflow and lining extrusion deformation under thermal expansion.
5. Wrong Operation: Weld or drill holes on tank shell after delivery
Correct Method Any tank reconstruction must be confirmed by our technical team, self-welding will crack lining and cause acid leakage.
· Inner Protection Treatment All tank inner cavities are covered dustproof plastic film; every flange, nozzle port is sealed with dedicated PTFE anti-collision cap to prevent acid lining scratch during transportation.
· Outer Reinforced Packaging Small vertical tanks adopt integrated solid wooden box packaging; large horizontal tanks use customized steel frame fixed support to avoid roll and collision in long-distance sea and land transport.
· Loading & Transport Protection Tanks are fixed with anti-slip cushion blocks during container loading, separate partition between multiple tanks to avoid mutual friction damage.
· Delivery Ports Support Qingdao, Shanghai, Tianjin mainstream international seaports can arrange shipment, with real-time logistics tracking service.
Complete Customs Clearance Documents Provide commercial invoice, packing list, CE pressure vessel certificate, full factory acid-resistant inspection report for overseas customs clearance.
A: Yes, 3-4mm thickened acid-resistant PTFE lining can bear long-term static storage of various inorganic concentrated acids.
A: It is not recommended for long-term HF storage, you need to select our special fluorine-resistant seamless lined storage vessel.
A: Vertical and horizontal two structures are fully customizable, we adjust saddle support size according to plant height limit.
A: Conventional stocked specifications can be shipped within 7 working days after order confirmation.
A: Stop storing acid liquid immediately and contact our after-sales team for lining repair solution.
A: Full set lined elbow, tee, acid valve supporting accessories are available for one-stop procurement.
