PTFE Lined Chemical Storage Tank

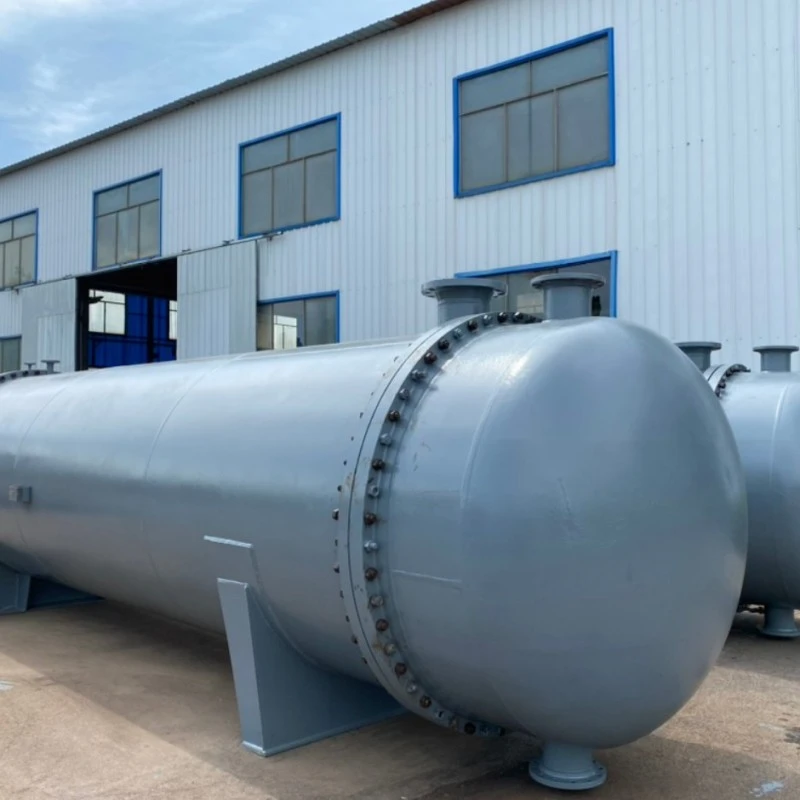

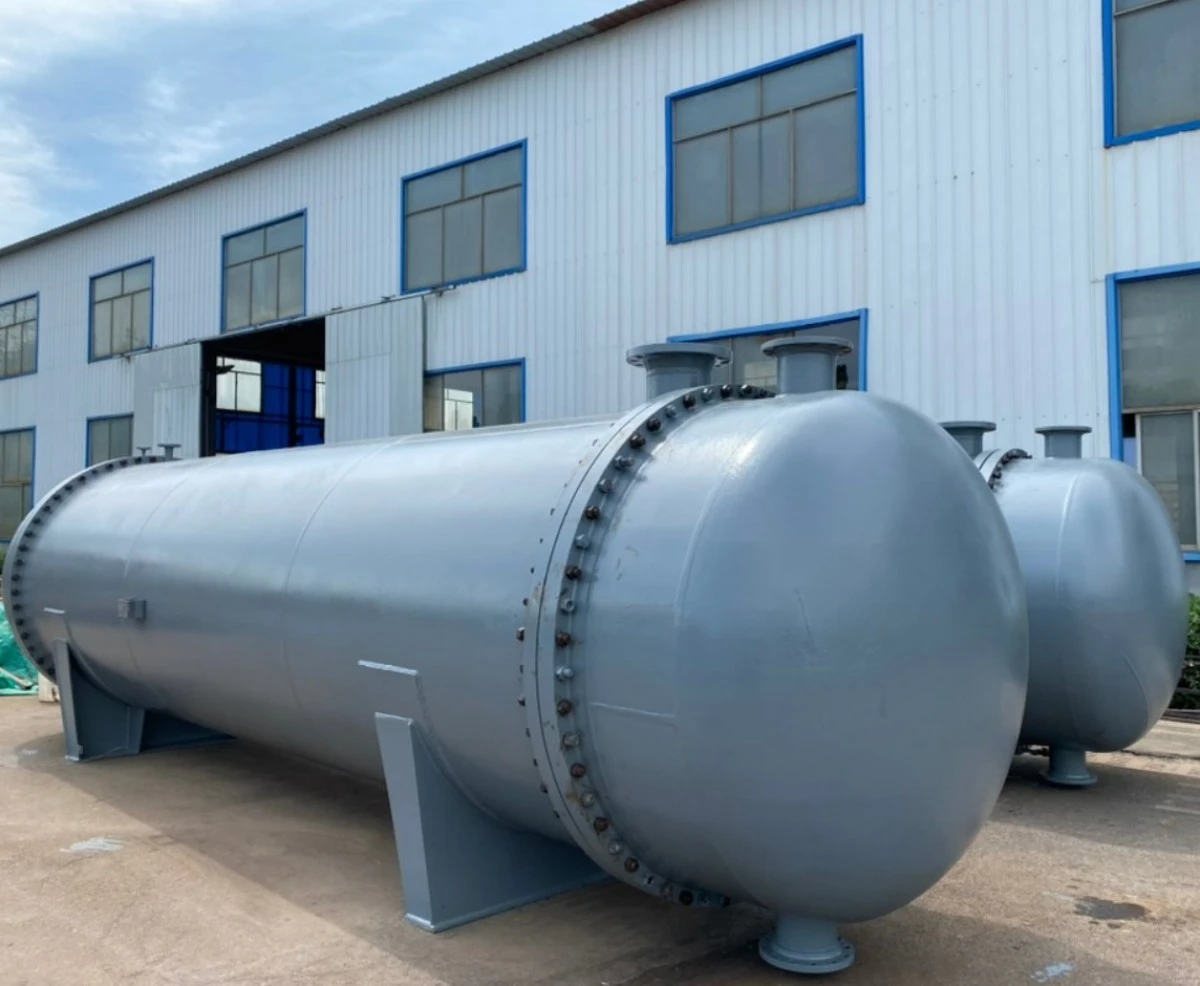

If you need long-term safe containment of multi-component corrosive chemical raw materials, Zhuoyan factory’s PTFE Lined Chemical Storage Tank is your ideal storage solution. Different from single-acid dedicated storage vessels, this series tank is engineered to adapt alternating acid & alkali stockpiling, mixed fluorine-containing solvent temporary storage and large-batch industrial raw material inventory management. The integral seamless PTFE lining eliminates hidden leakage risks at tank bottom and flange connections, which frequently occur on cheap lined storage tanks with spliced lining layers. We provide vertical ground type and horizontal saddle type two mainstream structures to match different factory workshop height and ground layout requirements.

What Is PTFE Lined Chemical Storage Tank

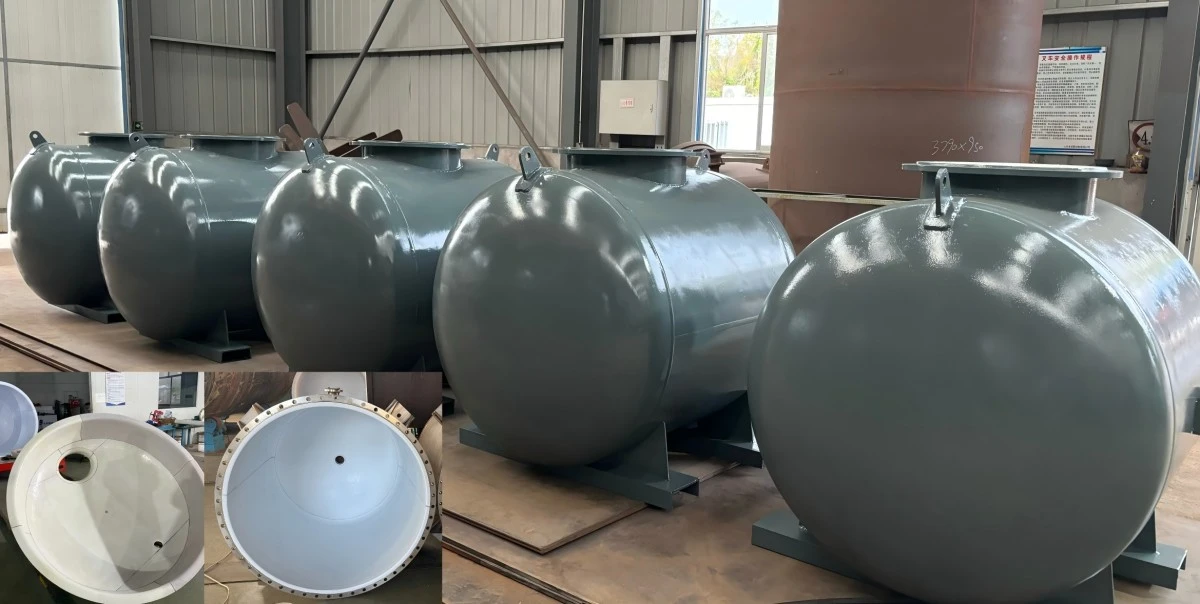

PTFE Lined Chemical Storage Tank is a carbon steel pressure storage vessel integrated with seamless sodium-activated PTFE inner lining, specially designed for mass storage of various corrosive industrial chemical raw materials, semi-finished intermediates and waste liquid buffer materials. The high-strength Q345R steel shell provides stable mechanical support for long-term static storage, while the inert PTFE liner isolates all kinds of corrosive media from metal shell erosion. Unlike PFA sprayed storage tanks with thin coating easy to wear, our plate-lined PTFE layer has thick uniform thickness, resisting long-term static medium soaking. Standard volume covers small lab buffer 100L up to large chemical park 100000L storage specification, working temperature range -180℃~260℃, supporting atmospheric and slight negative pressure storage working conditions.

Core Unique Advantages For Chemical Storage Projects

· Integral Seamless PTFE Plate Lining Technology Whole tank inner lining adopts one-piece large PTFE sheet vacuum lamination, only minimal V-type welding at manhole, greatly reduce medium penetration risk compared with segmented spliced lining of small manufacturers.
· Wide Medium Compatibility For Mixed Chemicals 3–5mm adjustable thick PTFE liner can bear alternating storage of acid, alkali and organic mixed media, no need to replace different tanks for various raw materials, cut total storage equipment procurement cost.
· Complete Matching Lined Pipeline System Support one-stop purchase of PTFE lined elbow, tee, valve and discharge pipe, realize fully closed anti-corrosion storage & conveying system without medium leakage.
· Strict Full-Process Anti-Leak QC Standard Each tank goes through sandblasting roughness inspection, high-temperature degreasing, full-wall 10KV spark scanning and hydraulic tightness test before leaving factory, zero hidden lining leakage risk.

Main Industry Application Scenarios

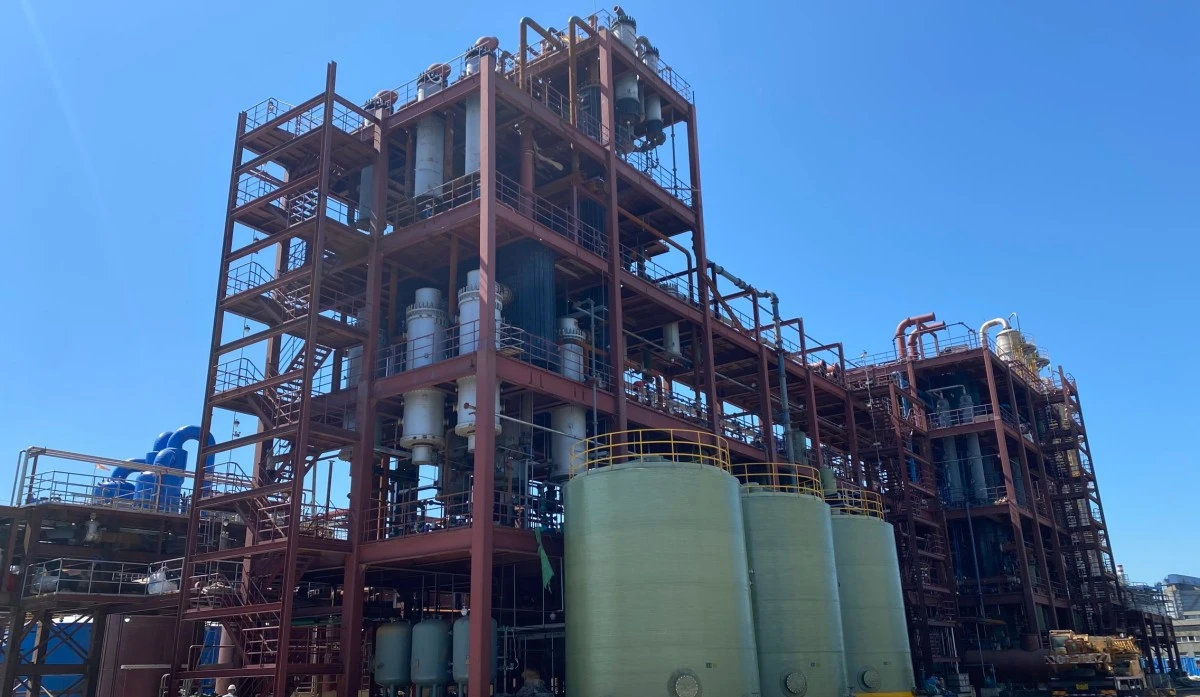

This chemical dedicated lined storage tank serves multi-industry raw material storage systems, with mass delivery records to Southeast Asia, Middle East chemical industrial parks:
Fine Chemical Raw Material Stockpiling: Mixed acid, fluorochemical intermediate long-term storage
Lithium New Energy Industry: Electrolyte raw material buffer storage, lithium salt stock tank
Environmental Waste Liquid Treatment: Corrosive waste acid & alkali temporary holding tank
Petrochemical Auxiliary Agent Storage: High-corrosion additive sealed storage
Chlor-Alkali Chemical Plant: Caustic soda, hydrochloric acid centralized storage station
Rare Earth Metallurgy: Acid leaching liquid intermediate storage tank.

Complete Technical Parameter Table

Why Choose Zhuoyan For Chemical Storage Tank Procurement

· Over 10 years dedicated manufacturing experience of large-volume fluorine lined storage equipment, delivered dozens of complete chemical park storage station projects overseas.
· Independent R&D lining process patents, own 10,000-class dust-free clean workshop exclusive for tank inner lining processing.
· Full set imported inspection instruments: UK Elcometer spark detector, Germany lining thickness tester for full tank quality monitoring.
· Transparent production tracking: Provide real-time photos & video during tank lining processing, factory on-site inspection available for clients.
· Multilingual sales team reply inquiry within 24 hours, provide free chemical medium compatibility analysis and storage station layout drawing design.
· Factory direct selling without middlemen, large chemical park bulk order enjoy exclusive integrated discount

Standard Production & QC Flow For Lined Storage Tank

· Steel Shell Deep Processing: Full weld polishing, 500℃ high-temperature degreasing to eliminate internal residual stress
· Sodium Activation Treatment For PTFE Raw Material: Enhance adhesive performance before vacuum lamination
· Whole Tank Vacuum Seamless Lamination: Large PTFE sheet tightly attached to tank inner wall, double PFA welding for manhole joint
· Multi-Round Finished Inspection: Visual surface check → Full-wall 10KV spark leak detection → 1.2x design hydraulic pressure test → Dust-free cleaning

Official Warranty Terms

· Carbon steel tank shell structural warranty: 10 years
· Whole PTFE lining layer warranty: 5 years (exclude artificial scratch, sharp object impact damage)
· Supporting lined accessories warranty: 2 years

FAQ

Q1: Can this PTFE Lined Chemical Storage Tank store alternating acid and alkali raw materials in batches?
A: Yes, 4–5mm thick integral PTFE lining can adapt cyclic storage of mixed acid, alkali and organic solvents without lining damage.

Q2: What’s the maximum customizable volume of horizontal outdoor storage tank?
A: We support up to 100000L one-piece horizontal lined chemical storage tank for chemical park centralized stock.

Q3: Can you design complete storage station matched lined pipeline and valves together?
A: We provide one-stop full set fluorine lined storage & conveying supporting fittings matching service.
Q4: Does the tank support slight negative pressure sealed storage of volatile chemical solvents? A: The integral lining structure stably work under -0.08MPa micro negative pressure volatile medium storage condition.

Q5: Is there minimum order quantity for chemical park bulk storage tank orders?
A: No strict MOQ, single small buffer tank acceptable; large-volume whole station order get big wholesale discount.

Q6: Can you supply CE certificate for overseas chemical factory customs clearance?
A: Complete pressure vessel CE qualification and full batch inspection reports can be provided for all storage tanks.
