PTFE Lined Industrial Separation Column System is a full-set turn-key separation unit, distinctly different from single independent distillation or rectification column. A single tower body only completes internal mass-transfer; while this integrated system integrates core separation tower, reboiler heating unit, overhead condenser, reflux buffer receiver and full set anti-corrosion pipe-valve fittings into one coherent process loop. All wetted components adopt seamless PTFE lining to cope with hot corrosive vapor and condensate. Modular skid-mounted design shortens site installation workload, avoiding mismatch risks caused by purchasing scattered separate equipment. Widely supplied for overseas chemical parks for corrosive solvent fractionation, waste solvent regeneration and fluorine-containing mixture purification projects.

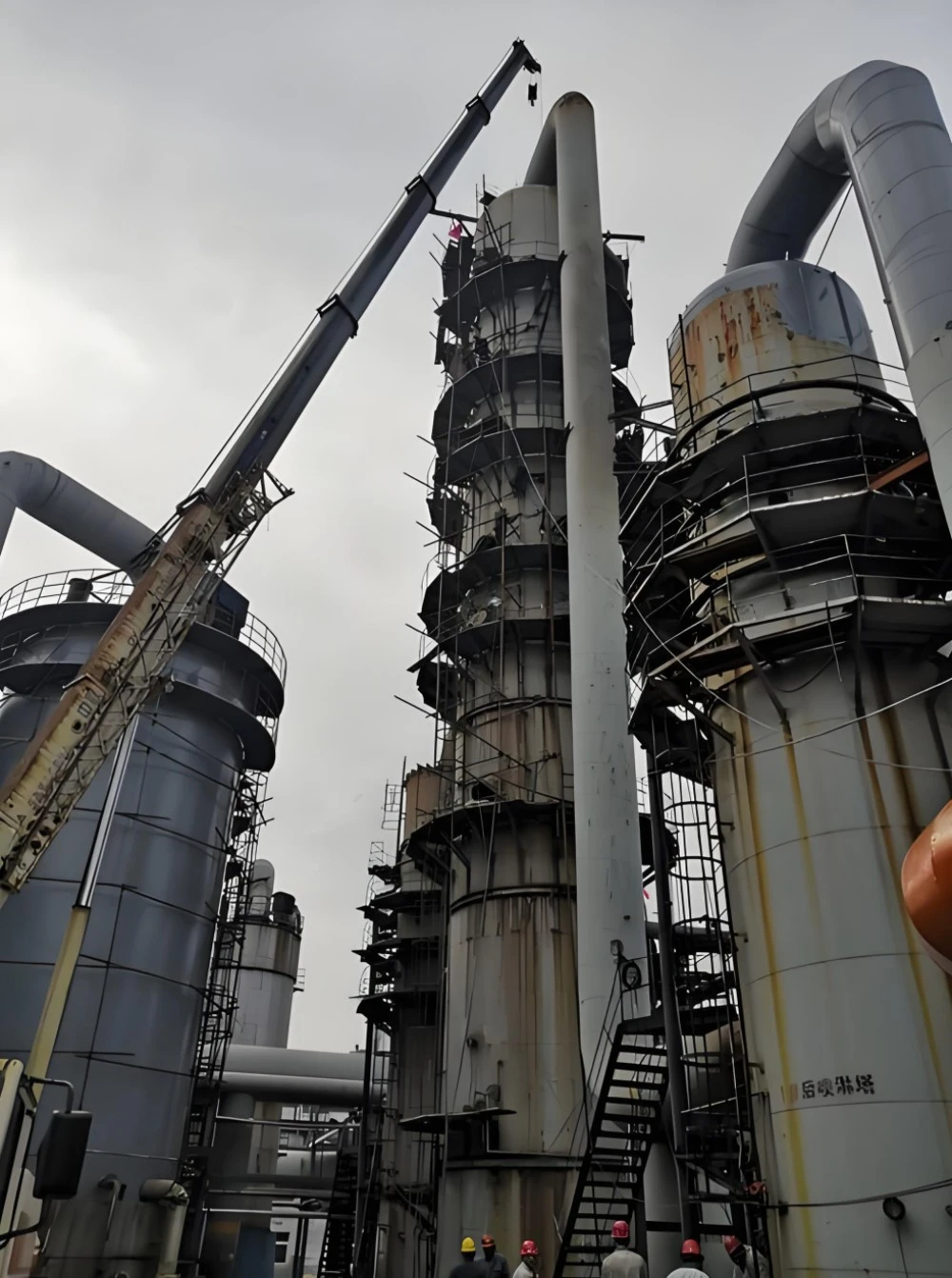

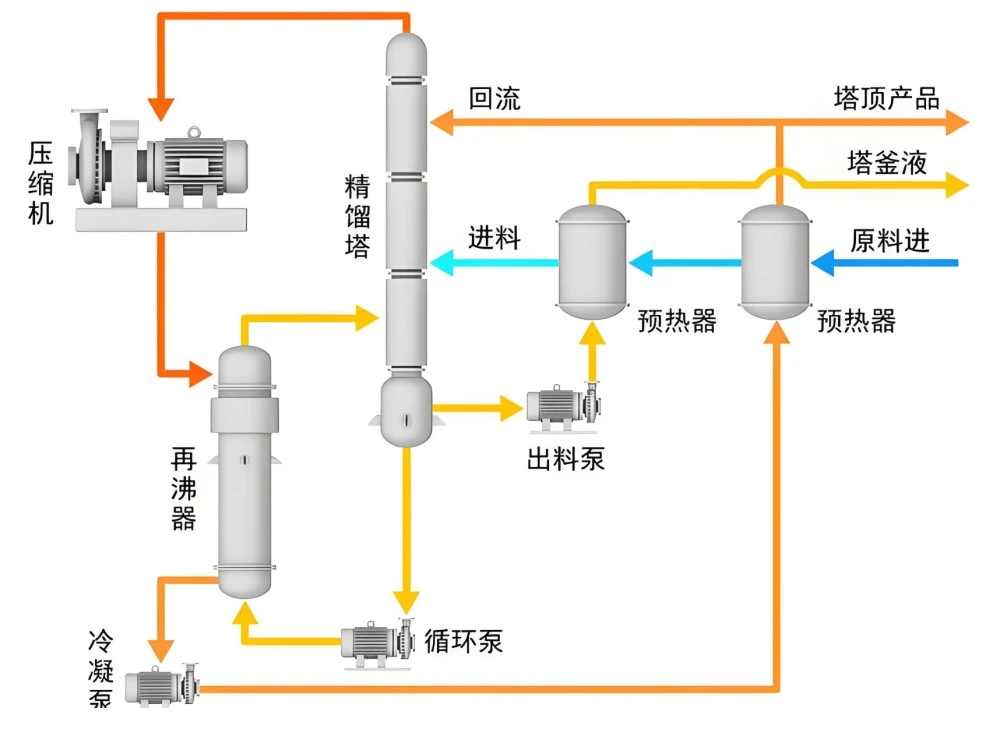

PTFE Lined Industrial Separation Column System is a modular integrated turn-key separation assembly for corrosive chemical mixture fractionation. The whole system consists of multiple PTFE-lined process units: main separation column, PTFE-lined reboiler, overhead condenser, reflux receiver, lined control valves, tees and conveying pipelines. The main column completes vapor-liquid counter-current mass-transfer; reboiler generates rising corrosive vapor; overhead condenser cools vapor into condensate; reflux receiver buffers distillate and realizes reflux circulation. All inner surfaces touching corrosive vapor or liquid are fully covered by vacuum-laminated PTFE lining. It adopts unified HG20536 anti-corrosion flanges inside the skid, realizing closed continuous separation workflow, no need customers to source scattered separate equipment. It can operate under atmospheric or moderate vacuum for multi-component corrosive-medium separation.
1. Complete Turn-Key Integrated Solution Integrate main column, reboiler, condenser, reflux vessel and supporting pipe-valve assembly in one skid. Avoid parameter-mismatch risk from multi-supplier scattered procurement, reduce customer engineering coordination workload.
2. Full-Loop PTFE Lining Protection Not only main tower body; reboiler, condenser inner cavity, reflux receiver and all connecting piping-valve components adopt PTFE anti-corrosion lining. Eliminate local corrosion weak points existing in partial-lined separation units.
3. Modular Skid-Mounted Pre-fabrication Pre-assembled and pre-tested inside factory. On-site work only requires utility connection, greatly shorten field installation and commissioning cycle for chemical plant projects.
4. Adapt Continuous Batch-Switching Production Optimized for long-run 24-h continuous separation, also support intermittent batch purification. Internal smooth PTFE surface lowers cross-contamination risk during switching different feed-stock mixtures.
5. Flexible Process-Oriented Customization Adjust tower internals, heat-exchange area and reflux-loop configuration according to customer separation-purity target, feed-medium property and processing capacity.
6. Unified Anti-corrosion Interface Standard All internal connections adopt HG20536 full-PTFE-lined flange standard; external interface can dock with upstream feeding tank and downstream product storage vessels conveniently.
| Parameter Item | Integrated Separation Column System Technical Data |
| Full Product Name | PTFE Lined Industrial Separation Column System |
| Main-Tower Diameter | DN400 ~ DN2600 |
| Effective Separation Height | 3m-24m (modular tower-section combination) |
| System Composition | Main separation column + lined reboiler + condenser + reflux receiver + full set lined pipe-valve assembly |
| Shell Material | Q345R pressure-vessel carbon steel for each unit |
| PTFE Lining Thickness | 3 mm (general acid-alkali vapor) / 4 mm (fluorine-containing corrosive vapor) |
| Working Temperature | -180℃ ~ 230℃ |
| Operating Pressure | Atmospheric ~1.0 MPa; stable vacuum down to -0.08 MPa |
| Optional Tower Internals | Random packing / structured packing / multi-stage liquid redistributor |
| Skid Form | Integrated pre-fabricated skid / split large-module field-assembly type |
| Factory Inspection Standard | 10 KV full-wall spark scan for every unit + hydraulic holding test + whole-loop circulation simulation test |
Suitable for full-loop separation of corrosive multi-component mixtures, with export delivery records to Southeast-Asia and Middle-East chemical industrial parks:
1. Fluorochemical industry: Fractionation and purification of fluorine-containing mixed solvent mixtures
2. Fine-chemical plant: Corrosive raw-material multi-component separation and high-purity distillate collection
3. Waste-solvent recycling project: Regeneration and separation of acidic / alkaline waste mixed solvent
4. New-energy auxiliary material production: Purification of corrosive process solvent for lithium-material manufacturing
5. Environmental-protection chemical project: Separation and recovery of valuable components from corrosive waste liquid
6. Pilot-scale industrial test: Complete separation loop for corrosive-medium process research
1. Individual unit shell processing: Main-column sections, reboiler, condenser and reflux-receiver shell welding, full weld polishing and high-temperature degreasing for each pressure-bearing component.

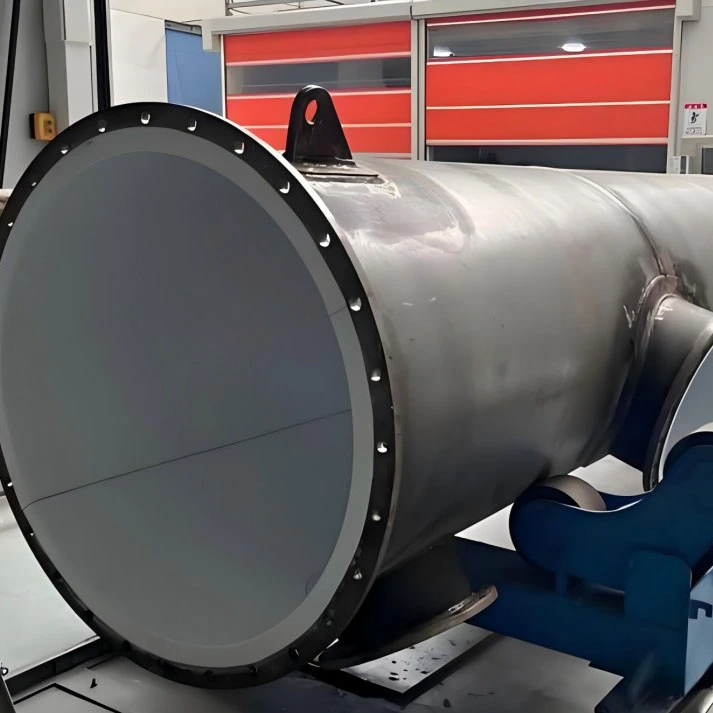

2. Each component inner-wall Sa2.5-grade heavy sandblasting treatment, improve adhesive strength for PTFE sheet.
3. Sodium-activation raw-material treatment; vacuum seamless PTFE lamination for every wetted unit inside 10 000-grade clean workshop; double PFA hot-melt welding on all nozzle and flange transition corners.
4. Install tower internals for main separation column; assemble matching lined valves, elbows and tees for inter-unit connecting pipelines.
5. Pre-assembly on factory skid frame; mechanical alignment for reboiler-condenser-receiver loop.
6. Multi-level inspection: Unit-by-unit 10KV spark scanning; individual hydraulic pressure holding test; complete-system closed circulation simulation test to verify whole-loop tightness.
7. System disassembly (for oversized split-module type); clean inner cavity of each component; seal all flanges with dedicated PTFE protective caps; adopt reinforced steel-frame packaging for sea-land mixed-transport shipment.
A: Single column is only tower-body hardware; this is complete turn-key loop including reboiler, condenser, reflux receiver and full pipe-valve set, factory pre-assembled skid-mounted unit.
A: Select upgraded 4 mm thickened PTFE lining for fluorine-containing vapor condition; please provide feed-medium composition for our technical evaluation in advance.
A: Adopt split modular pre-fabrication; each unit is manufactured, inspected separately in factory and assembled on-site following our assembly drawing.
A: Every single component passes spark scan and hydraulic test; besides, complete-system closed circulation simulation tightness test will be performed.
A: Unified HG20536 anti-corrosion flange standard for external interfaces, convenient docking with our full-series PTFE-lined process equipment.
A: Carbon-steel shell of each unit 10-year structural warranty; PTFE lining 5-year warranty (exclude artificial scratch and mis-operation damage); valves and internals accessories 2-year warranty.
